A3P250-2FG144I - Microchip

Description: FPGA - Field Programmable Gate Array A3P250-2FG144I

Download A3P250-2FG144I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

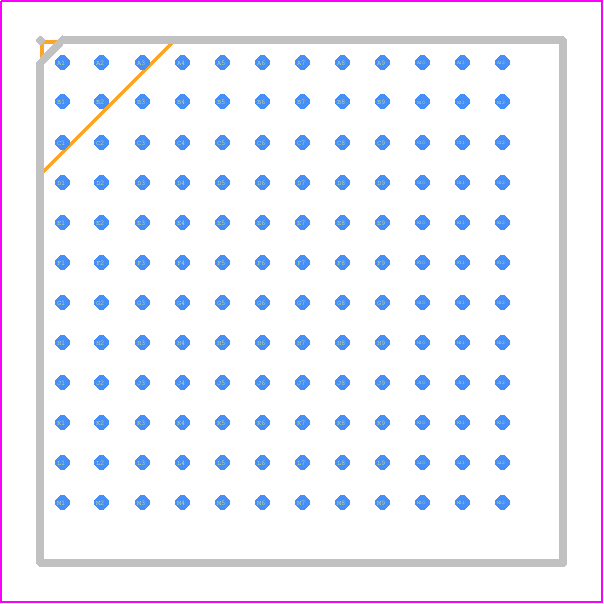

A3P250-2FG144I - Microchip PCB footprint - BGA - BGA - A3P250-2FG144I
click to zoom
3D Models
A3P250-2FG144I - Microchip  - 3D model - BGA - A3P250-2FG144I
click to zoom

A3P250-2FG144I Details

  • Manufacturer Part Number:

    A3P250-2FG144I

  • Part Life Cycle Code:

    Active

  • Pin Count:

    144

  • Manufacturer Package Code:

    LFBGA-144

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    23

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    235

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Technology:

    CMOS, 130 nm

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Time@Peak Reflow Temperature-Max (s):

    20

A3P250-2FG144I Frequently Asked Questions (FAQs)

  • Microchip provides a PCB design guide for the A3P250-2FG144I, which includes recommendations for PCB layout, routing, and signal integrity. It's essential to follow these guidelines to ensure signal integrity and minimize electromagnetic interference (EMI).
  • A reliable POR circuit can be implemented using a voltage supervisor IC, such as the Microchip MCP112-315JE/MS, which can detect the power supply voltage and generate a reset signal to the FPGA. The POR circuit should be designed to ensure that the FPGA is properly reset during power-up and power-down sequences.
  • The A3P250-2FG144I has a thermal design power (TDP) of 1.5W. To ensure reliable operation, it's essential to implement proper thermal management, including heat sinks, thermal interfaces, and airflow management. The FPGA's thermal performance should be evaluated using thermal simulation tools and thermal testing.
  • To optimize the clock tree, it's essential to use a clock tree synthesis tool, such as the Microchip Libero SoC design suite, to generate a clock tree that minimizes skew and jitter. The clock tree should be designed to ensure that the clock signals are properly routed, and the clock domains are properly isolated.
  • To implement a secure boot process, it's essential to use a secure boot mechanism, such as the Microchip Secure Boot process, which ensures that the FPGA is configured with a trusted bitstream. The secure boot process should include features such as authentication, encryption, and secure key storage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A3P250-2FG144I Overview

Use the download button to access the A3P250-2FG144I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3P25, or try a keyword search, such as Field Programmable Gate Arrays
