Microsemi provides a PCB design guide for the A3P600-FG256I, which recommends a 4-layer PCB with a specific stack-up and routing strategy to minimize signal integrity issues and ensure reliable operation.
A POR circuit can be implemented using a voltage supervisor IC, such as the TLV7031, which can detect the power supply voltage and generate a reset signal to the FPGA. The FPGA's internal POR circuit can also be used in conjunction with an external capacitor to ensure a reliable reset.
The A3P600-FG256I has a maximum junction temperature of 100°C. To ensure reliable operation, a thermal management strategy should be implemented, including heat sinks, thermal interfaces, and airflow management. Microsemi provides thermal modeling and simulation tools to aid in thermal design.
The A3P600-FG256I has built-in security features, including a secure boot mechanism and firmware authentication using digital signatures. Microsemi provides a secure boot guide and tools to aid in implementing secure boot and firmware authentication.
The A3P600-FG256I is designed to be radiation-tolerant, but may still be susceptible to single-event effects (SEEs) and total ionizing dose (TID) effects. Microsemi provides radiation testing and characterization data, as well as mitigation strategies, such as error correction codes and redundancy, to ensure reliable operation in high-radiation environments.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3P600-FG256I Overview

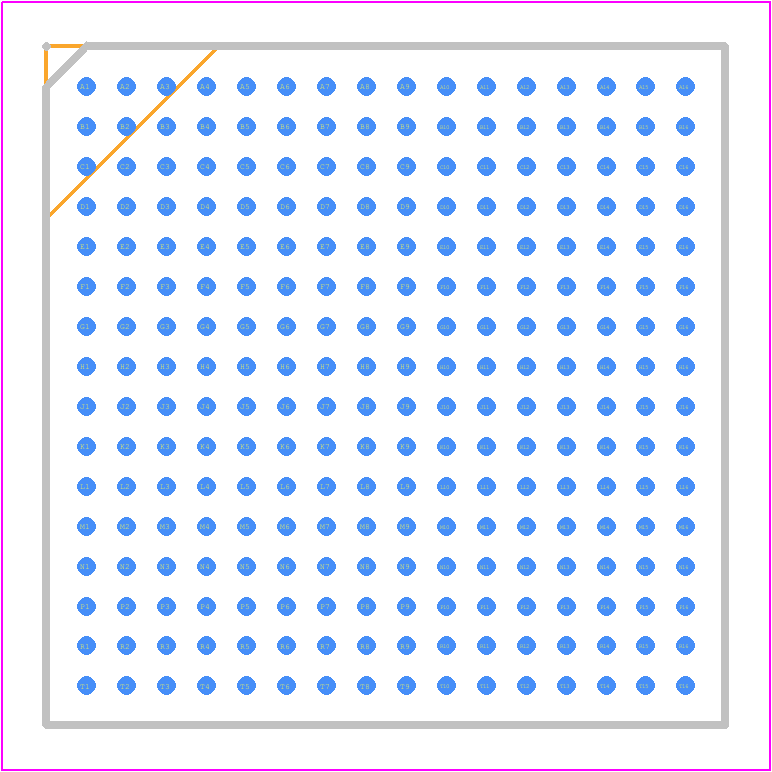

Use the download button to access the A3P600-FG256I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3P60,
or try a keyword search, such as Field Programmable Gate Arrays
