A40MX02-PLG68 - Microsemi Corporation

Description: FPGA 40MX Family 3K Gates 295 Cells 83MHz/139MHz 0.45um Technology 3.3V/5V 68-Pin PLCC Box

Download A40MX02-PLG68 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

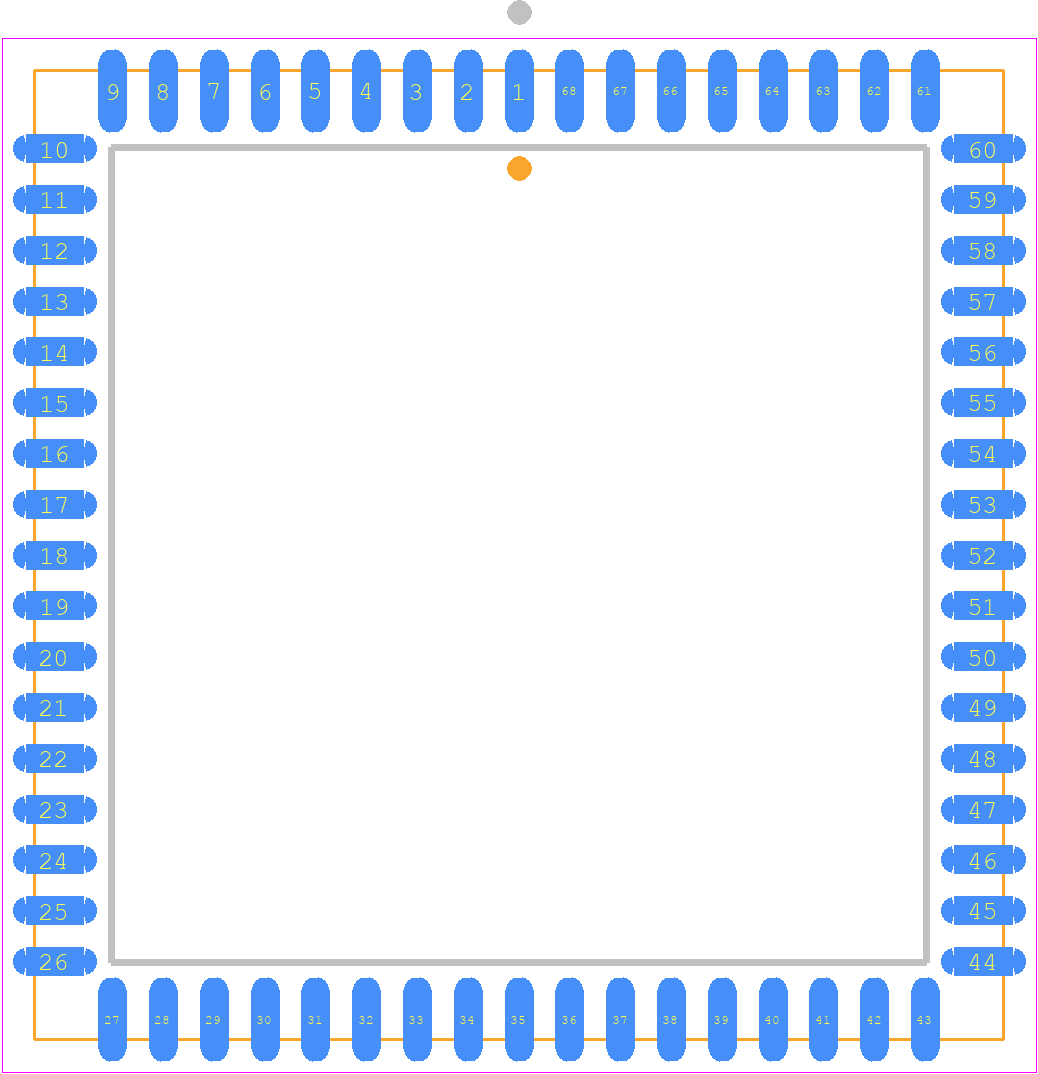

A40MX02-PLG68 - Microsemi Corporation PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - 68PLCC
click to zoom

A40MX02-PLG68 Details

  • Manufacturer Part Number:

    A40MX02-PLG68

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, PLASTIC, LCC-68

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Additional Feature:

    ALSO OPERATES AT 5V SUPPLY

  • Clock Frequency-Max:

    80 MHz

  • Combinatorial Delay of a CLB-Max:

    2.7 ns

  • JESD-30 Code:

    S-PQCC-J68

  • JESD-609 Code:

    e3

  • Length:

    24.2316 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    295

  • Number of Equivalent Gates:

    3000

  • Number of Terminals:

    68

  • Operating Temperature-Max:

    70 °C

  • Organization:

    295 CLBS, 3000 GATES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC68,1.0SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.572 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    24.2316 mm

A40MX02-PLG68 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the A40MX02-PLG68 can be found in the Microsemi Corporation's FPGA PCB Design and Package Thermal Management Application Note (document number: DS012). It provides guidelines for PCB layout, thermal management, and power distribution to ensure optimal performance and reliability.
  • A reliable and efficient POR circuit for the A40MX02-PLG68 can be implemented using a voltage supervisor IC, such as the Microsemi Corporation's MIC2777. This IC provides a reset signal to the FPGA during power-up, ensuring that the device is properly initialized. The POR circuit should be designed to meet the FPGA's power-on reset timing requirements, as specified in the datasheet.
  • Best practices for configuring and using the A40MX02-PLG68's clock management resources include using the Clock Wizard tool in the Libero SoC design software to generate clock domains, configuring the clock resources to meet the specific requirements of the design, and ensuring that clock signals are properly routed and terminated to minimize skew and jitter.
  • To optimize the A40MX02-PLG68's power consumption, designers should use the Power Analyzer tool in the Libero SoC design software to estimate power consumption, implement power-gating and clock-gating techniques, use low-power modes, and optimize the FPGA's voltage and frequency settings for the specific application requirements.
  • To implement a reliable and secure boot process for the A40MX02-PLG68, designers should use a secure boot mechanism, such as the Microsemi Corporation's Secure Boot process, which uses a combination of hardware and software security features to ensure the authenticity and integrity of the FPGA's configuration data.
