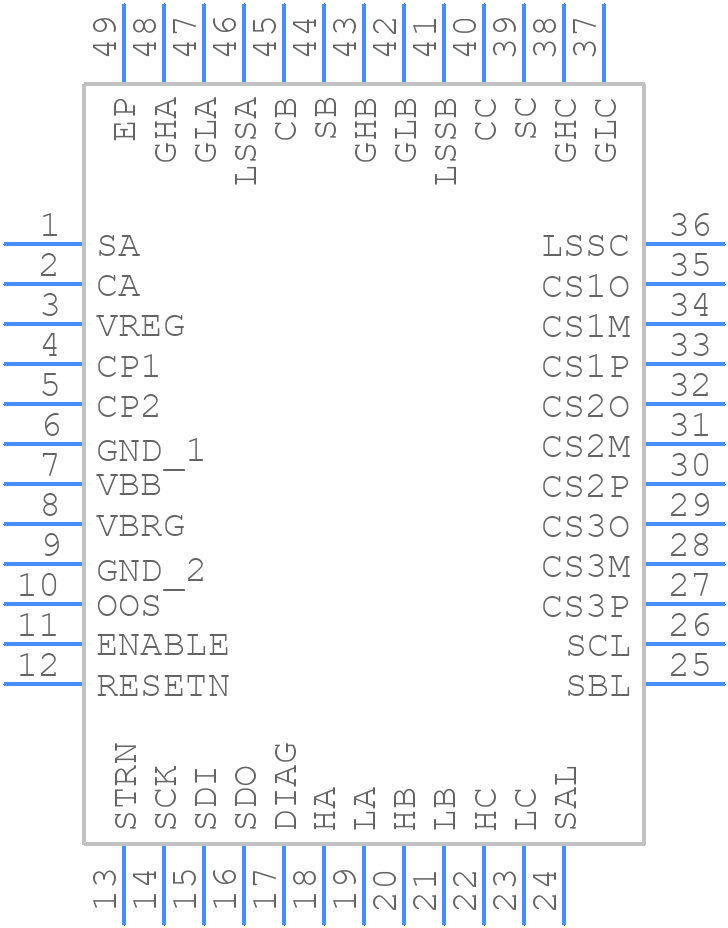

A4911KJPTR-T - Allegro Microsystems

A4911KJPTR-T Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the A4911KJPTR-T to minimize EMI?
  A good PCB layout practice is to keep the high-current paths short and wide, and to use a solid ground plane to reduce EMI. It's also recommended to keep the device away from noise sources and to use shielding if necessary.
• How do I ensure the A4911KJPTR-T is properly thermally managed?
  Proper thermal management can be achieved by providing a heat sink or a thermal pad on the device, and ensuring good airflow around the device. The device's thermal pad should be connected to a copper plane on the PCB to dissipate heat efficiently.
• What is the recommended input capacitor value and type for the A4911KJPTR-T?
  The recommended input capacitor value is 10uF to 22uF, and a low-ESR ceramic capacitor (X5R or X7R dielectric) is recommended. The capacitor should be placed as close to the device as possible to minimize noise and ripple.
• How do I troubleshoot the A4911KJPTR-T if it's not functioning as expected?
  First, check the input voltage and current to ensure they are within the recommended range. Then, check the output voltage and current to ensure they are within the expected range. If the issue persists, check the PCB layout and component placement to ensure they are correct. Finally, consult the datasheet and application notes for troubleshooting guides.
• Can the A4911KJPTR-T be used in a high-temperature environment?
  The A4911KJPTR-T is rated for operation up to 150°C, but it's recommended to derate the device's performance at high temperatures. Consult the datasheet for thermal derating information and ensure proper thermal management to prevent overheating.
