A4919GETTR-5-T - Allegro Microsystems

Description: Three-Phase MOSFET Driver with Integrated Regulator

Download A4919GETTR-5-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

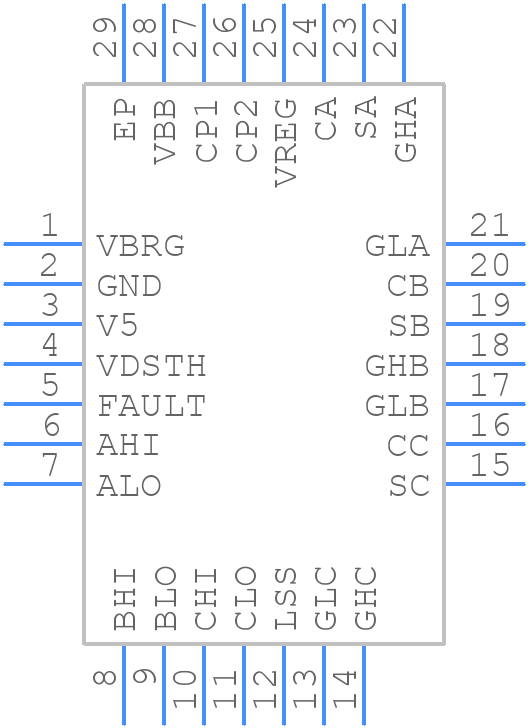

A4919GETTR-5-T - Allegro Microsystems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ET, 28-Terminal QFN with Exposed Thermal Pad
click to zoom
3D Models
A4919GETTR-5-T - Allegro Microsystems  - 3D model - Quad Flat No-Lead - ET, 28-Terminal QFN with Exposed Thermal Pad
click to zoom

A4919GETTR-5-T Details

  • Manufacturer Part Number:

    A4919GETTR-5-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Allegro MicroSystems LLC

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC28,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

A4919GETTR-5-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296070, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The maximum allowable current can be calculated using the device's thermal resistance (RθJA), maximum junction temperature (Tjmax), and ambient temperature (Ta). Allegro provides a thermal calculation worksheet in their application note AN296070 to help with this calculation.
  • Allegro recommends a 10 μF ceramic capacitor with a voltage rating of 16 V or higher for the VREG pin to ensure stable voltage regulation and minimize noise.
  • Yes, the A4919GETTR-5-T is designed to withstand high-vibration environments. However, it's essential to follow proper PCB design and assembly guidelines, such as using a robust PCB material, secure component mounting, and adequate solder joints, to ensure reliable operation.
  • Allegro provides a troubleshooting guide in their application note AN296070, which covers common issues such as output current limiting, overcurrent protection, and thermal shutdown. The guide provides step-by-step procedures for identifying and resolving these issues.
