A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A minimum of 2 oz copper thickness is recommended, and thermal vias can be used to improve heat dissipation.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its specified temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
The recommended decoupling capacitors for the A4919GETTR-T are 0.1 μF to 1 μF ceramic capacitors, placed as close to the device as possible. These capacitors help to filter out noise and ensure stable operation.
To troubleshoot issues with the device's output current, check the input voltage, output load, and PCB layout for any signs of overheating or electrical noise. Verify that the device is operated within its specified current rating, and that the output current is not exceeding the maximum rating.
Operating the device at the maximum current rating can lead to increased power dissipation, which may result in reduced reliability and lifespan. It's essential to ensure that the device is operated within its specified current rating, and that proper thermal design and layout guidelines are followed.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4919GETTR-T Overview

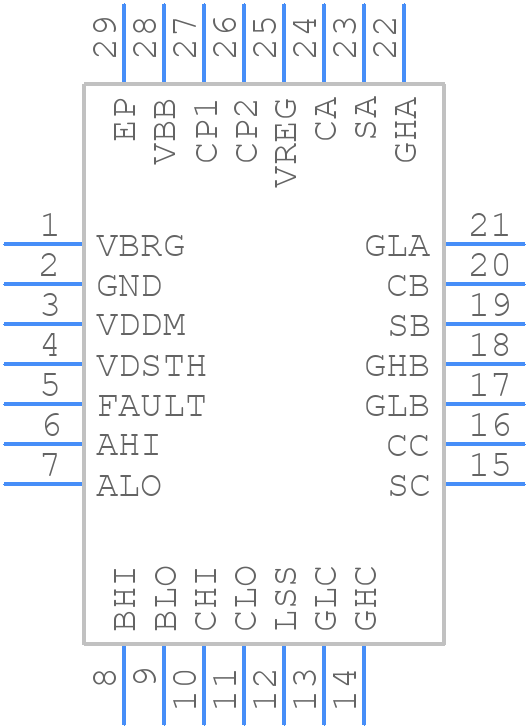

Use the download button to access the A4919GETTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4919,
or try a keyword search, such as Motion Control Electronics
