Allegro provides a recommended PCB layout in their application note AN296070, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The A4919GLPTR-3-T has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, Allegro recommends using a thermal interface material (TIM) between the device and the heat sink to improve thermal conductivity.
Allegro recommends using a low-pass filter (LPF) or a band-pass filter (BPF) at the input of the A4919GLPTR-3-T to filter out high-frequency noise and ensure stable operation. The specific filter configuration will depend on the application and the noise environment.
To troubleshoot issues with the output current sensing, Allegro recommends checking the sense resistor value, the sense voltage, and the output current range to ensure they are within the specified limits. Additionally, verify that the sense lines are properly connected and not subject to noise or interference.
The A4919GLPTR-3-T can be programmed using the SPI interface. Allegro provides a programming guide in their application note AN296071, which includes details on the register map, programming commands, and example code.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4919GLPTR-3-T Overview

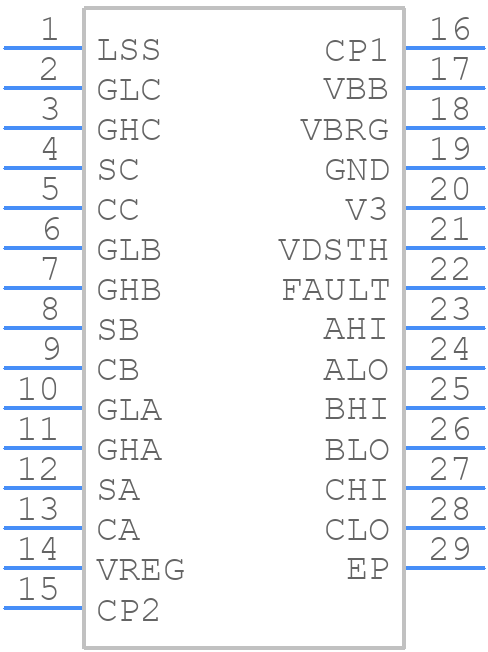

Use the download button to access the A4919GLPTR-3-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4919,
or try a keyword search, such as Motion Control Electronics
