Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, use a suitable thermal interface material, and consider derating the device's current output according to the temperature derating curve provided in the datasheet.
Allegro recommends using a 10 μF to 22 μF X7R or X5R ceramic capacitor with a voltage rating of 25 V or higher, placed as close as possible to the VIN pin to filter out noise and ensure stable operation.
Yes, the A4919GLPTR-T is suitable for battery-powered applications due to its low quiescent current (IQ) and high efficiency. However, it's essential to consider the device's shutdown mode and enable/disable functionality to minimize power consumption during idle periods.
To troubleshoot issues with output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the feedback resistors are correctly connected and that the output voltage is within the specified range. Also, verify that the device is not overheating or experiencing excessive voltage drops.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4919GLPTR-T Overview

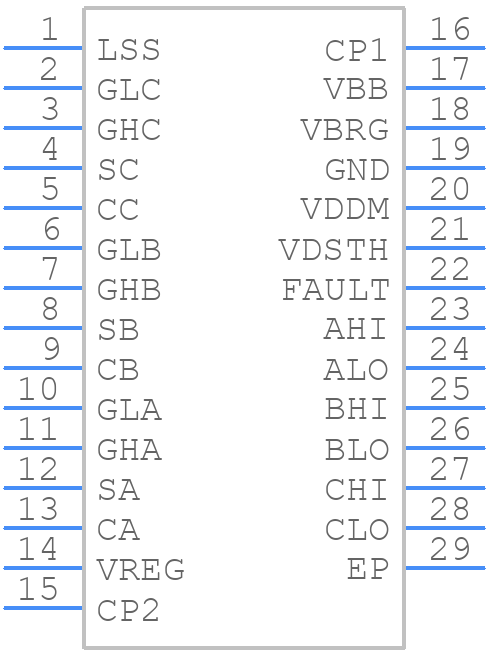

Use the download button to access the A4919GLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4919,
or try a keyword search, such as Motion Control Electronics
