A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design, secure the device with a sturdy mechanical fastening system, and consider using a conformal coating to protect the device from moisture and contaminants.
A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input capacitor, placed as close to the VIN pin as possible, to filter out noise and ripple.
Check the input voltage, ensure the enable pin is properly biased, and verify the output voltage is within the specified range. Also, check for any signs of overheating, and ensure the device is properly soldered and connected.
The maximum allowed voltage on the output pin is 6.5V, exceeding this voltage may damage the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4941GLPTR-T Overview

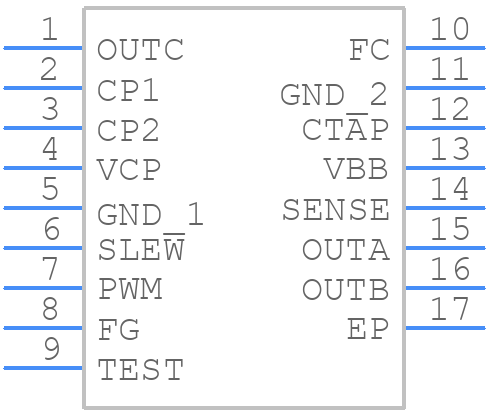

Use the download button to access the A4941GLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4941,
or try a keyword search, such as Motion Control Electronics
