A4945GLJTR-T - Allegro Microsystems

Description: Sensorless Sinusoidal BLDC Fan Driver W/Analog Speed Control

Download A4945GLJTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

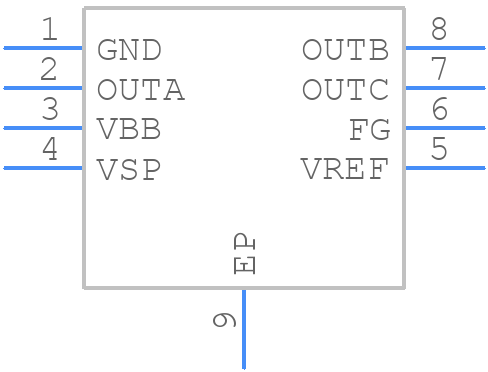

A4945GLJTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A4945GLJTR-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LJ 8-Pin SOIC with Exposed Thermal Pad
click to zoom
3D Models
A4945GLJTR-T - Allegro Microsystems - 3D model - Small Outline Packages - LJ 8-Pin SOIC with Exposed Thermal Pad
click to zoom

A4945GLJTR-T Details

  • Manufacturer Part Number:

    A4945GLJTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Seated Height-Max:

    1.7 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

A4945GLJTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A4945GLJTR-T is -40°C to 150°C.
  • The A4945GLJTR-T requires a single 5V power supply, and it's recommended to use a decoupling capacitor of 10nF to 100nF between the VCC and GND pins to ensure stable operation.
  • The typical current consumption of the A4945GLJTR-T is around 10mA, but it can vary depending on the operating frequency and output load.
  • The A4945GLJTR-T can be configured using the SPI interface, and Allegro provides a software development kit (SDK) and application notes to help with configuration and customization.
  • Yes, the A4945GLJTR-T is AEC-Q100 qualified, making it suitable for automotive applications, including powertrain, safety, and infotainment systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A4945GLJTR-T Overview

Use the download button to access the A4945GLJTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4945, or try a keyword search, such as Motion Control Electronics
