A4945GLTR-T - Allegro Microsystems

Description: Sensorless Sinusoidal BLDC Fan Driver W/Analog Speed Control

Download A4945GLTR-T Model
Schematic
symbols

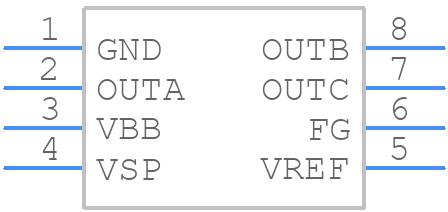

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A4945GLTR-T - Allegro Microsystems PCB footprint - Other - Other - Package L, 8-Pin SOIC
click to zoom
3D Models
A4945GLTR-T - Allegro Microsystems  - 3D model - Other - Package L, 8-Pin SOIC
click to zoom

A4945GLTR-T Details

  • Manufacturer Part Number:

    A4945GLTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

A4945GLTR-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296068, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • To ensure reliable operation in high-vibration environments, Allegro recommends following their guidelines for PCB mounting and screw torque, as well as using a robust PCB design with adequate stiffness and damping. Additionally, the device's internal clamp diodes can help protect against voltage transients caused by vibration.
  • According to Allegro's application note AN296070, the maximum allowable voltage on the VCC pin during power-up is 16V, and the device can withstand voltage transients up to 18V for a short duration (less than 100ms).
  • Allegro provides a troubleshooting guide in their application note AN296071, which includes steps to check the voltage regulator's output, input, and enable pins, as well as recommendations for debugging techniques such as scope measurements and voltage monitoring.
  • Allegro recommends following the ESD protection guidelines in their application note AN296069, which includes using ESD-sensitive handling and storage procedures, as well as incorporating ESD protection devices such as TVS diodes or ESD arrays in the PCB design.
