Part Image

A4955KLPTR-T - Allegro Microsystems

Description: Single Full Brdige MOSFET Driver

Download A4955KLPTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

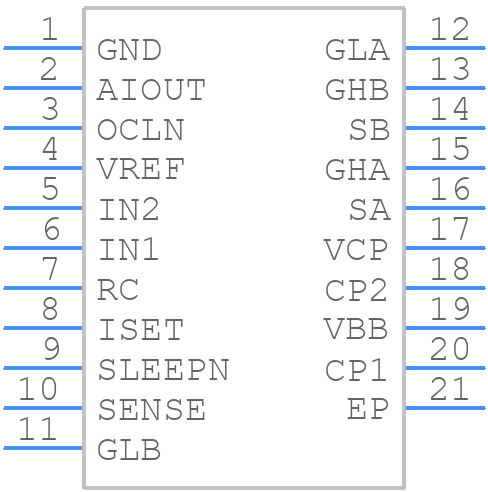

A4955KLPTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A4955KLPTR-T - Allegro Microsystems PCB footprint - Other - Other - LP,20-Lead TSSOP
click to zoom
3D Models
A4955KLPTR-T - Allegro Microsystems - 3D model - Other - LP,20-Lead TSSOP
click to zoom

A4955KLPTR-T Details

  • Manufacturer Part Number:

    A4955KLPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

A4955KLPTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A4955KLPTR-T is -40°C to 150°C.
  • The A4955KLPTR-T requires a single 5V power supply, and it's recommended to use a decoupling capacitor of 10nF to 100nF between the VCC and GND pins to ensure stable operation.
  • The maximum current rating for the A4955KLPTR-T is 1.5A, but it's recommended to keep the current below 1A for reliable operation.
  • The A4955KLPTR-T can be configured for half-bridge or full-bridge operation by connecting the appropriate pins and setting the input logic levels according to the datasheet.
  • The minimum input pulse width required for the A4955KLPTR-T is 100ns, but it's recommended to use a pulse width of at least 1μs for reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A4955KLPTR-T Overview

Use the download button to access the A4955KLPTR-T schematic symbol, PCB footprint, and 3D model.
