A4956GLPTR-T - Allegro Microsystems

Description: Single Full Brdige MOSFET Driver

Download A4956GLPTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

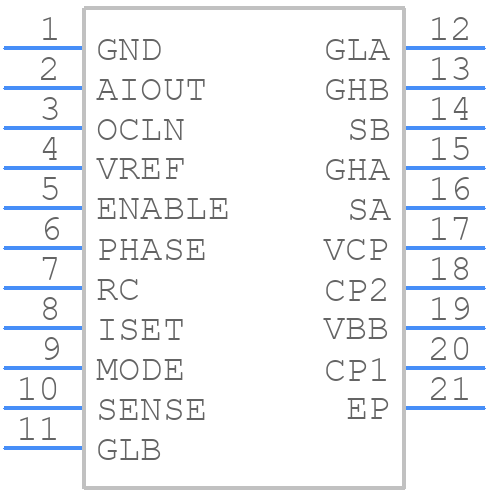

Symbol
A4956GLPTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A4956GLPTR-T - Allegro Microsystems PCB footprint - Other - Other - LP,20-Lead TSSOP
click to zoom
3D Models
A4956GLPTR-T - Allegro Microsystems - 3D model - Other - LP,20-Lead TSSOP
click to zoom

A4956GLPTR-T Details

  • Manufacturer Part Number:

    A4956GLPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8.2

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

A4956GLPTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A4956GLPTR-T is -40°C to 150°C.
  • The A4956GLPTR-T requires a single 5 V supply voltage (VCC) and a separate ground (GND) connection. Ensure that the power supply is stable and within the recommended operating range.
  • The VREG pin is an internal voltage regulator output that can be used to power external components. It is recommended to use a capacitor (e.g., 10 μF) between VREG and GND to filter the output voltage.
  • The A4956GLPTR-T can be configured for half-bridge or three-phase operation by connecting the appropriate pins (e.g., HBEN, PHASE, and INDEX) according to the application requirements. Refer to the datasheet and application notes for specific configuration details.
  • A good PCB layout should ensure that the A4956GLPTR-T is placed on a thermally conductive material (e.g., copper) and that there is adequate heat dissipation (e.g., thermal vias, heat sinks). Follow Allegro's recommended PCB layout guidelines and thermal management recommendations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A4956GLPTR-T Overview

Use the download button to access the A4956GLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4956, or try a keyword search, such as Motion Control Electronics
