A4956KLPTR-T - Allegro Microsystems

Description: Single Full Bridge MOSFET Driver

Download A4956KLPTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

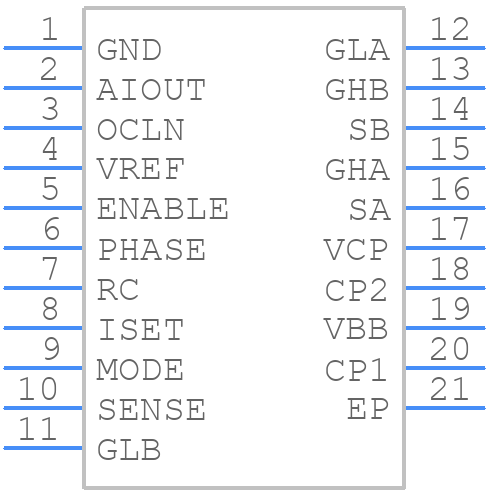

Symbol
A4956KLPTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A4956KLPTR-T - Allegro Microsystems PCB footprint - Other - Other - LP,20-Lead TSSOP
click to zoom
3D Models
A4956KLPTR-T - Allegro Microsystems - 3D model - Other - LP,20-Lead TSSOP
click to zoom

A4956KLPTR-T Details

  • Manufacturer Part Number:

    A4956KLPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

A4956KLPTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A4956KLPTR-T is -40°C to 150°C.
  • The A4956KLPTR-T requires a single 5V power supply, and it's recommended to use a decoupling capacitor of 10nF to 100nF between the VCC and GND pins to ensure stable operation.
  • The maximum current rating for the A4956KLPTR-T is 1.5A per phase, and it's recommended to use a current sense resistor to monitor the current and prevent overheating.
  • The A4956KLPTR-T can be configured for different motor types by adjusting the external resistors and capacitors, and by using the SPI interface to program the device's registers.
  • The nSLEEP pin is an active-low input that puts the device into a low-power sleep mode when pulled low, reducing the quiescent current to less than 10μA.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A4956KLPTR-T Overview

Use the download button to access the A4956KLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4956, or try a keyword search, such as Motion Control Electronics
