A4963GLPTR-T - Allegro Microsystems

Description: Sensorless BLDC MOSFET Gate Driver

Download A4963GLPTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

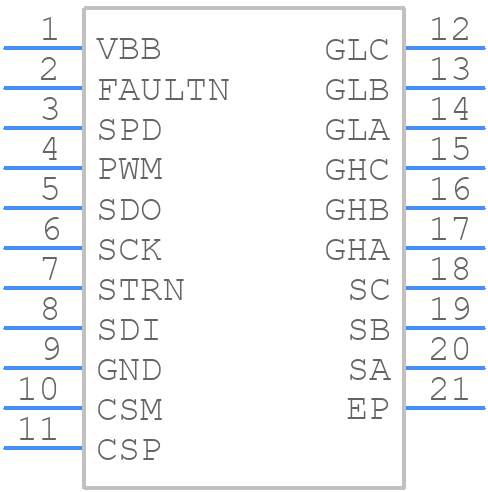

A4963GLPTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A4963GLPTR-T - Allegro Microsystems PCB footprint - Other - Other - LP,20-Lead TSSOP
click to zoom
3D Models
A4963GLPTR-T - Allegro Microsystems - 3D model - Other - LP,20-Lead TSSOP
click to zoom

A4963GLPTR-T Details

  • Manufacturer Part Number:

    A4963GLPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8.1

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    10 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

A4963GLPTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A4963GLPTR-T is -40°C to 150°C.
  • To ensure proper configuration, refer to the application notes and design guides provided by Allegro MicroSystems LLC, and consult with their technical support team if necessary.
  • Follow the recommended PCB layout and thermal management guidelines provided in the datasheet and application notes, and consider consulting with a thermal management expert if necessary.
  • Consult the troubleshooting guide provided in the datasheet and application notes, and contact Allegro MicroSystems LLC's technical support team for further assistance.
  • Yes, follow the EMI/EMC guidelines provided in the datasheet and application notes, and consider consulting with an EMI/EMC expert if necessary.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A4963GLPTR-T Overview

Use the download button to access the A4963GLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4963, or try a keyword search, such as Motion Control Electronics
