A4964KJPTR-T - Allegro Microsystems

Description: Automotive Sensorless Sinusoidal BLDC MOSFET Gate Driver W/Lin Receiver

Download A4964KJPTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

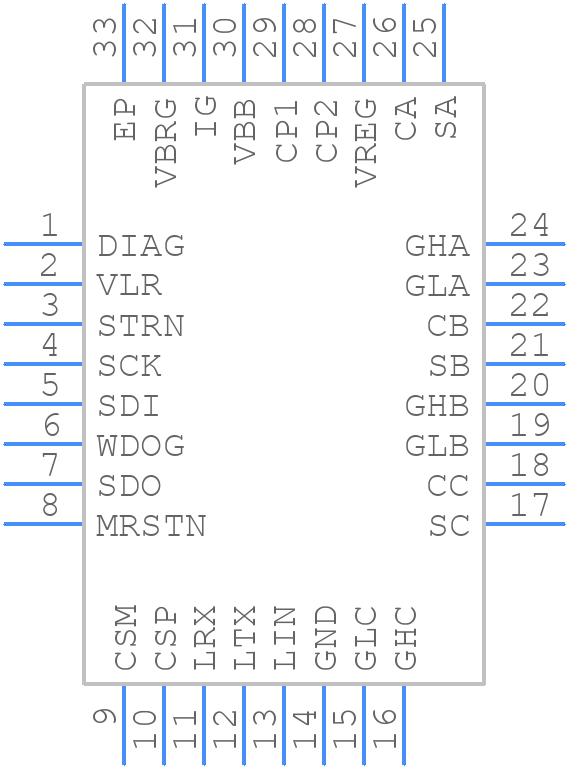

A4964KJPTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A4964KJPTR-T - Allegro Microsystems PCB footprint - Quad Flat Packages - Quad Flat Packages - A4960KJPTR-T
click to zoom
3D Models
A4964KJPTR-T - Allegro Microsystems - 3D model - Quad Flat Packages - A4960KJPTR-T
click to zoom

A4964KJPTR-T Details

  • Manufacturer Part Number:

    A4964KJPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFP-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQFP-G32

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

A4964KJPTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A4964KJPTR-T is -40°C to 150°C.
  • The A4964KJPTR-T requires a single 5 V supply voltage (VCC) and a separate 5 V or 3.3 V logic supply voltage (VDD). Ensure that the power supply is stable and within the recommended operating range.
  • A good PCB layout for the A4964KJPTR-T should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 0.1 μF) between VCC and GND.
  • The A4964KJPTR-T can be configured for different motor types (e.g., stepper, DC, or brushless) by setting the appropriate registers and configuring the motor control pins (e.g., STEP, DIR, and ENABLE). Refer to the datasheet and application notes for specific configuration details.
  • The maximum current rating for the A4964KJPTR-T is 1.5 A per phase, with a peak current rating of 2.5 A per phase.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A4964KJPTR-T Overview

Use the download button to access the A4964KJPTR-T schematic symbol, PCB footprint, and 3D model.
