A4970SLBTR-T - Allegro Microsystems

Description: Dual Full Bridge PWM Motor Driver

Download A4970SLBTR-T Model

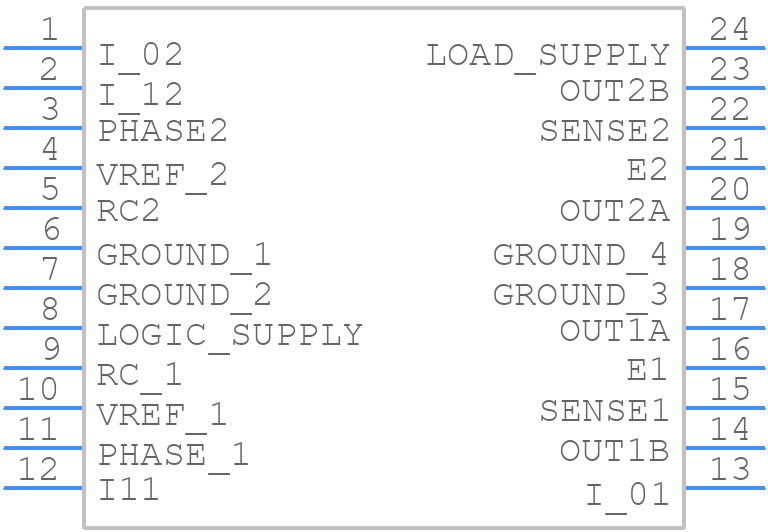

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

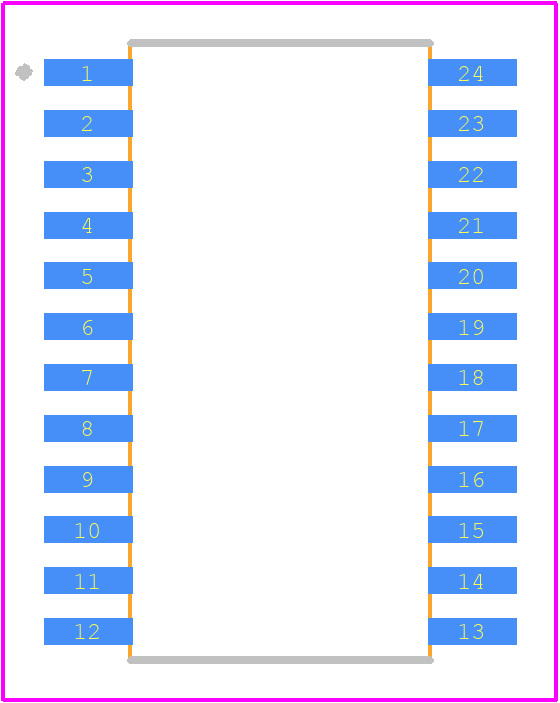

A4970SLBTR-T - Allegro Microsystems PCB footprint - Other - Other - LB 24-pin SOICW
click to zoom
3D Models
A4970SLBTR-T - Allegro Microsystems  - 3D model - Other - LB 24-pin SOICW
click to zoom

A4970SLBTR-T Details

  • Manufacturer Part Number:

    A4970SLBTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, MS-013AD, SOIC-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Additional Feature:

    ALSO REQUIRE 7.45V TO 45V

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    10 mA

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    7.5 mm

A4970SLBTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A4970SLBTR-T is -40°C to 150°C.
  • The A4970SLBTR-T requires a single 5V power supply, and it's recommended to use a decoupling capacitor of 10nF to 100nF between the VCC and GND pins to ensure stable operation.
  • The typical current consumption of the A4970SLBTR-T is around 10mA, but it can vary depending on the operating frequency and output load.
  • The A4970SLBTR-T can be configured using external resistors to set the output current limit, overcurrent threshold, and fault detection threshold. Refer to the datasheet for specific configuration examples.
  • The FAULT pin is an open-drain output that indicates a fault condition, such as overcurrent, overtemperature, or undervoltage. It can be used to trigger an interrupt or shutdown the system in case of a fault.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A4970SLBTR-T Overview

Use the download button to access the A4970SLBTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4970, or try a keyword search, such as Motion Control Electronics
