A5191HRTLG-XTD - onsemi

Description: Low power ; Bell 202 shift frequencies of 1200 Hz and 2200 Hz; Single-chip, half-duplex 1200 bits per second FSK modem; Transmit-signal wave shaping; Receive band-pass filter; Meets HART physical layer requirements; CMOS compatible

Download A5191HRTLG-XTD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

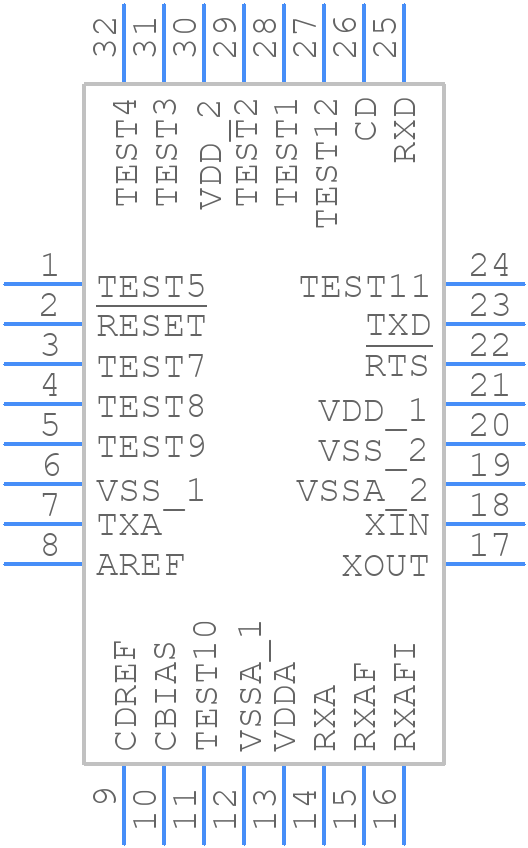

A5191HRTLG-XTD - onsemi - PCB symbol
click to zoom
PCB Footprints
A5191HRTLG-XTD - onsemi PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP-32 7x7 CASE 561AB
click to zoom
3D Models
A5191HRTLG-XTD - onsemi - 3D model - Quad Flat Packages - LQFP-32 7x7 CASE 561AB
click to zoom

A5191HRTLG-XTD Details

  • Manufacturer Part Number:

    A5191HRTLG-XTD

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LQFP32, 7x7

  • Pin Count:

    32

  • Manufacturer Package Code:

    561AB

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Data Rate:

    1 Mbps

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    0.0006 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

A5191HRTLG-XTD Frequently Asked Questions (FAQs)

  • A good layout should include a solid ground plane, minimal thermal vias, and a heat sink attached to the exposed pad. Refer to onsemi's application note AND9233/D for more details.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Also, ensure the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C.
  • For optimal performance, use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. A 10uF input capacitor and a 22uF output capacitor are recommended, but the exact values may vary depending on the specific application.
  • Implement overvoltage protection (OVP) and undervoltage lockout (UVLO) circuits to prevent damage from voltage transients. A zener diode or a dedicated OVP IC can be used for OVP, while a voltage supervisor IC can be used for UVLO.
  • Follow the JEDEC J-STD-020D.1 standard for reflow soldering, with a peak temperature of 260°C and a dwell time of 20-40 seconds. For wave soldering, use a temperature of 260°C and a dwell time of 3-5 seconds.
