A good thermal design should include a solid ground plane, thermal vias, and a heat sink. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or use thermal simulation tools to ensure optimal performance.
To ensure EMC, follow proper PCB design guidelines, use shielding, and implement filtering and shielding techniques. Additionally, consult the onsemi application note AN1972 for more information on EMC design considerations.
The recommended soldering profile is a peak temperature of 260°C (500°F) with a dwell time of 10-30 seconds. It's essential to follow the JEDEC J-STD-020 standard for reflow soldering.
To handle the high current output, ensure your PCB design includes wide traces, multiple vias, and a solid power plane. Additionally, consider using a heat sink and thermal interface material to dissipate heat.
The A5191HRTLG-XTP is manufactured according to onsemi's quality and reliability standards, which include ISO/TS 16949, ISO 9001, and AEC-Q100. The device is also qualified according to the Automotive Electronics Council (AEC) Q100 standard.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5191HRTLG-XTP Overview

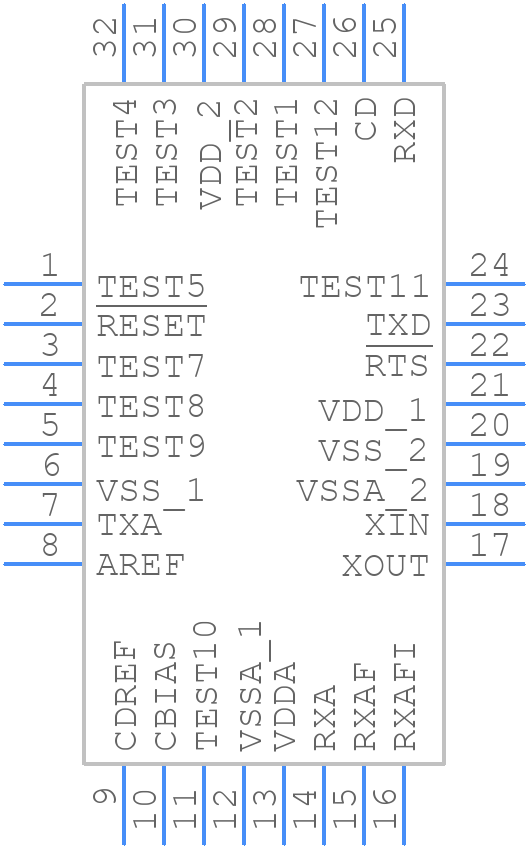

Use the download button to access the A5191HRTLG-XTP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5191,
or try a keyword search, such as Modems
