A good PCB layout for the A5191HRTNG-XTD should include a solid ground plane, wide power traces, and thermal vias to dissipate heat efficiently. It's also recommended to keep the device away from other heat sources and ensure good airflow around the component.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 150°C) and consider the device's thermal derating. Additionally, ensure proper heat sinking, and consider using thermal interface materials to improve heat transfer.
The recommended soldering conditions for the A5191HRTNG-XTD are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering temperature profile that follows the IPC J-STD-020D standard.
To prevent ESD damage, handle the A5191HRTNG-XTD with ESD-protective equipment, such as wrist straps, mats, and bags. Ensure that the device is stored in its original packaging or an ESD-protective container when not in use.
The A5191HRTNG-XTD's high current handling requires careful PCB design consideration. Ensure that the PCB traces and vias can handle the high current, and consider using thicker copper layers or multiple layers to reduce resistance and heat generation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5191HRTNG-XTD Overview

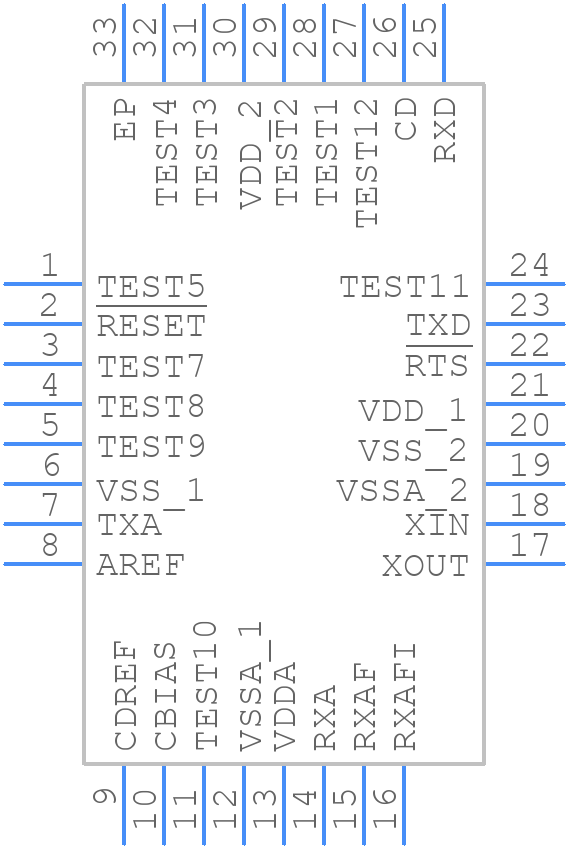

Use the download button to access the A5191HRTNG-XTD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5191,
or try a keyword search, such as Modems
