A5358CA-T - Allegro Microsystems

Description: Photoelectric Smoke Detector with Interconnect and Timer

Download A5358CA-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

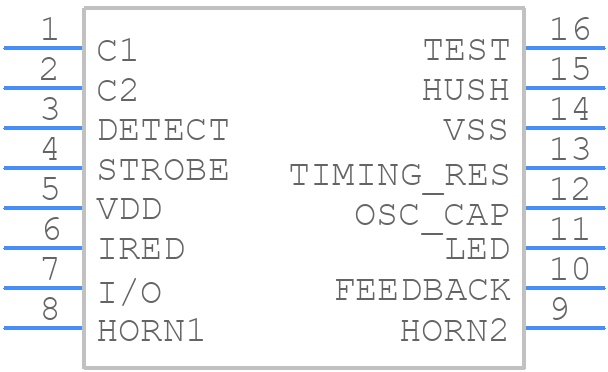

A5358CA-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints

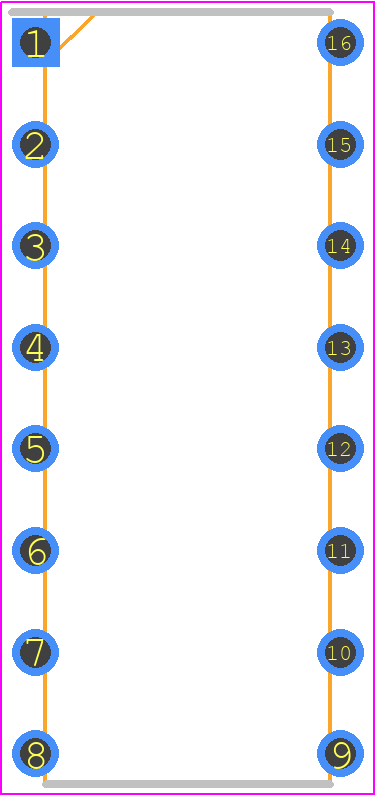

A5358CA-T - Allegro Microsystems PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - A,16-Pin DIP
click to zoom
3D Models
A5358CA-T - Allegro Microsystems - 3D model - Dual-In-Line Packages - A,16-Pin DIP
click to zoom

A5358CA-T Details

  • Manufacturer Part Number:

    A5358CA-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    DIP

  • Package Description:

    LEAD FREE, PLASTIC, MS-001BB, DIP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.05 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Supply Voltage-Max (Vsup):

    12 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    9 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    7.62 mm

A5358CA-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the A5358CA-T involves keeping the sense lines as short as possible, using a ground plane, and minimizing noise coupling. Allegro provides a recommended PCB layout in their application note AN296070, which can be found on their website.
  • To handle the output signal of the A5358CA-T in a noisy environment, use a low-pass filter or a shielded cable to reduce electromagnetic interference (EMI). Additionally, consider using a differential output configuration to improve noise immunity.
  • The A5358CA-T has an operating temperature range of -40°C to 150°C, but it's essential to note that the device's accuracy and performance may degrade at extreme temperatures. Consult the datasheet for specific temperature-related specifications.
  • Yes, the A5358CA-T is designed to operate in high-vibration environments. However, it's crucial to ensure proper mounting and mechanical stability of the device to prevent damage or performance degradation.
  • Calibration of the A5358CA-T typically involves adjusting the zero-point and sensitivity of the device. Allegro provides calibration procedures and guidelines in their application notes and datasheets. It's essential to follow these guidelines to ensure accurate and reliable operation.
