Allegro provides a recommended PCB layout in the application note AN296068, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The thermal shutdown feature is designed to protect the device from overheating. When the device temperature exceeds the thermal shutdown threshold (typically 170°C), the output is disabled. To handle this, ensure proper thermal design, use a heat sink if necessary, and monitor the device temperature through the TSD pin.
Although the datasheet specifies a recommended operating voltage range of 5.5 V to 50 V, the absolute maximum rating for the VCC pin is 60 V. However, it's essential to note that operating the device at voltages above 50 V may affect its performance and reliability.
Yes, the A5366CA-T is designed to operate in high-vibration environments. However, it's crucial to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Allegro recommends following the guidelines in the application note AN296068 for mechanical design and assembly.
Allegro provides a troubleshooting guide in the application note AN296068, which covers common issues and their solutions. Additionally, engineers can contact Allegro's technical support team for further assistance and guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5366CA-T Overview

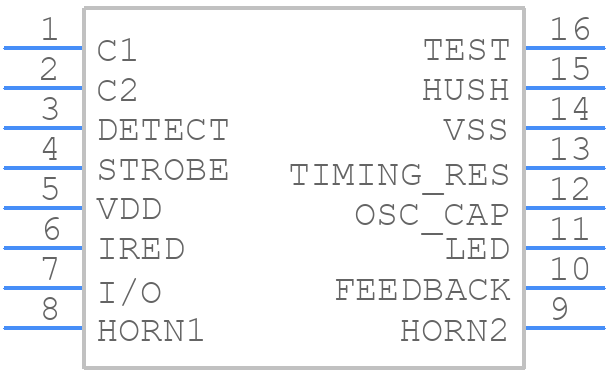

Use the download button to access the A5366CA-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5366,
or try a keyword search, such as Other Signal Circuits
