A5931GESTR-T - Allegro Microsystems

Description: Three-Phase Sensorless Sinusoidal Fan Driver

Download A5931GESTR-T Model

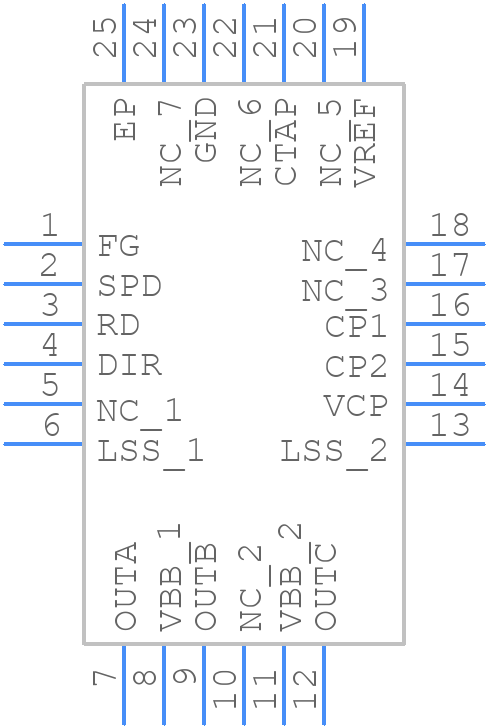

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A5931GESTR-T - Allegro Microsystems PCB footprint - Other - Other -  Package ES, 24-pin QFN with exposed thermal pad
click to zoom
3D Models
A5931GESTR-T - Allegro Microsystems  - 3D model - Other -  Package ES, 24-pin QFN with exposed thermal pad
click to zoom

A5931GESTR-T Details

  • Manufacturer Part Number:

    A5931GESTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • Moisture Sensitivity Level:

    2

A5931GESTR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A minimum of 2 oz copper thickness is recommended. Additionally, keeping the thermal pad away from other components and ensuring good airflow around the device can help improve thermal performance.
  • To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design with a secure mounting system for the device. Additionally, using a conformal coating or potting the device can help protect it from vibration-induced damage. It is also important to follow proper soldering and assembly techniques to prevent mechanical stress on the device.
  • The recommended decoupling capacitors for the A5931GESTR-T are 0.1 μF to 1 μF ceramic capacitors with a voltage rating of 10 V or higher. These capacitors should be placed as close to the device as possible, and connected between the VCC and GND pins.
  • To troubleshoot issues with the device's output current, first check the input voltage and ensure it is within the recommended range. Next, verify that the output pins are properly connected to the load and that the load is within the recommended current range. If the issue persists, check for any signs of overheating or thermal shutdown. Finally, consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • The thermal resistance values for the A5931GESTR-T are: RθJA (junction-to-ambient) = 45°C/W, RθJC (junction-to-case) = 10°C/W, and RθCS (case-to-sink) = 5°C/W. These values are based on the device being mounted on a single-layer PCB with a minimum of 2 oz copper thickness.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A5931GESTR-T Overview

Use the download button to access the A5931GESTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5931, or try a keyword search, such as Motion Control Electronics
