A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A minimum of 2 oz copper thickness is recommended. Additionally, keeping the thermal pad away from other components and ensuring good airflow around the device can help improve thermal performance.
To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design, secure the device to the PCB using a suitable adhesive or mechanical fastening, and consider using a vibration-dampening material such as a silicone adhesive or a vibration-absorbing pad. Additionally, ensuring good solder joints and using a reliable connector can help prevent mechanical stress on the device.
The recommended soldering conditions for the A5931GLPTR-T are a peak temperature of 260°C, a dwell time of 10-30 seconds, and a soldering iron temperature of 350-370°C. It is also recommended to use a solder with a melting point of 217-220°C and to avoid using excessive soldering iron pressure, which can damage the device.
To troubleshoot issues with the device's output current, first check the input voltage and ensure it is within the recommended range. Next, verify that the output pins are not short-circuited and that the load is within the recommended current rating. If the issue persists, check the device's thermal performance and ensure that it is not overheating. Finally, consult the datasheet and application notes for specific troubleshooting guidelines.
To protect the A5931GLPTR-T from electrostatic discharge (ESD), it is recommended to use ESD-sensitive handling and storage procedures, such as using anti-static bags, wrist straps, and mats. Additionally, ensure that the device is handled in a controlled environment with minimal humidity and temperature fluctuations. During PCB assembly, use ESD-protective equipment and follow proper soldering and handling procedures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5931GLPTR-T Overview

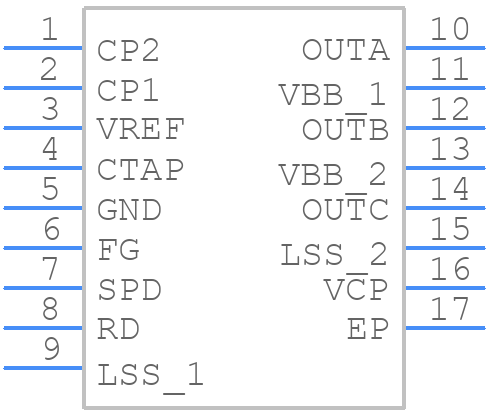

Use the download button to access the A5931GLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5931,
or try a keyword search, such as Motion Control Electronics
