A5932KLPTR-T - Allegro Microsystems

Description: Automotive Three-Phase Sinusoidal Sensorless Fan Controller

Download A5932KLPTR-T Model

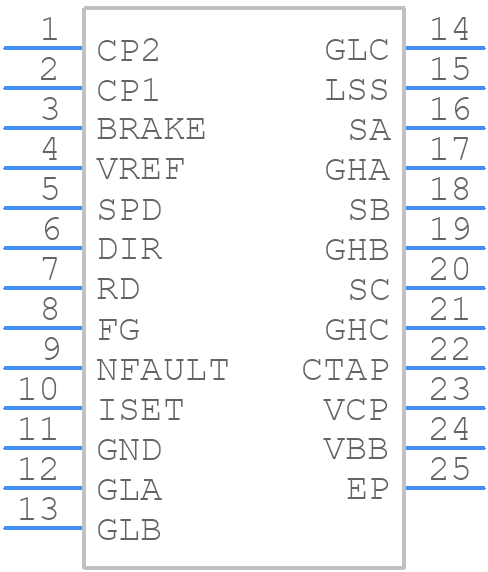

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A5932KLPTR-T - Allegro Microsystems PCB footprint - Other - Other - LP Package, 24-Pin TSSOP
click to zoom
3D Models
A5932KLPTR-T - Allegro Microsystems  - 3D model - Other - LP Package, 24-Pin TSSOP
click to zoom

A5932KLPTR-T Details

  • Manufacturer Part Number:

    A5932KLPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

A5932KLPTR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
  • To ensure reliable operation in high-vibration environments, it's recommended to use a robust PCB design, secure the device with a sturdy mechanical attachment, and consider using a vibration-dampening material such as a silicone adhesive.
  • The recommended soldering conditions for the A5932KLPTR-T are a peak temperature of 260°C, with a soldering time of 10-15 seconds. It's also recommended to use a solder with a melting point of 217°C or higher.
  • To troubleshoot issues with the device's output current, check the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Also, verify that the device is properly connected and that the PCB layout is correct.
  • To prevent ESD damage, it's recommended to handle the device by the body or the pins, and to use an ESD wrist strap or mat. Also, ensure that the PCB design includes ESD protection components such as TVS diodes or ESD arrays.
