A5970AD - STMicroelectronics

Description: Up to 1 A step down-switching regulator for automotive applications

Download A5970AD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

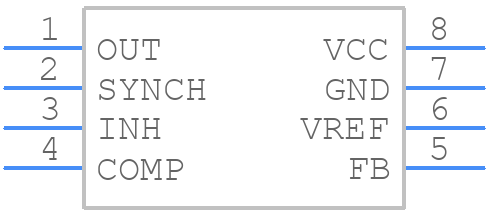

A5970AD - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
A5970AD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO 8_2025-1
click to zoom
3D Models
A5970AD - STMicroelectronics - 3D model - Small Outline Packages - SO 8_2025-1
click to zoom

A5970AD Details

  • Manufacturer Part Number:

    A5970AD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    LEAD FREE, SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR
