A5970ADTR - STMicroelectronics

Description: Up to 1 A step down-switching regulator for automotive applications

Download A5970ADTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

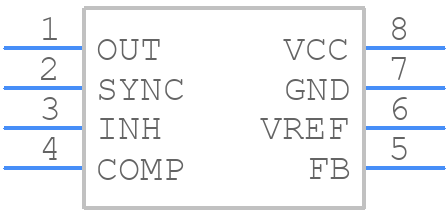

A5970ADTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
A5970ADTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-8_3
click to zoom
3D Models
A5970ADTR - STMicroelectronics - 3D model - Small Outline Packages - SO-8_3
click to zoom

A5970ADTR Details

  • Manufacturer Part Number:

    A5970ADTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • JESD-30 Code:

    R-PDSO-G8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    570 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

A5970ADTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management.
  • To optimize the A5970ADTR for low noise and high efficiency, follow the guidelines in the datasheet for component selection, PCB layout, and thermal management. Additionally, consider using a low-ESR output capacitor and a high-quality inductor.
  • The maximum ambient temperature for the A5970ADTR is 105°C, but it can be derated to 85°C for high-reliability applications. Refer to the datasheet for thermal derating curves.
  • The A5970ADTR is rated for a maximum input voltage of 18V, but it can be used in high-voltage applications with proper design considerations, such as using a voltage regulator or a DC-DC converter to step down the input voltage.
  • To troubleshoot issues with the A5970ADTR, follow a systematic approach: check the input voltage, output voltage, and current consumption. Use an oscilloscope to analyze the waveforms and identify any anomalies. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A5970ADTR Overview

Use the download button to access the A5970ADTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5970, or try a keyword search, such as Switching Regulator or Controllers
