A5975D - STMicroelectronics

Description: STMICROELECTRONICS - A5975D - DC/DC Boost Regulator, Adjustable, AEC-Q100, 4V to 36V In, 1.235V to 35V/3A Out, 250 kHz, PowerSO-8

Download A5975D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

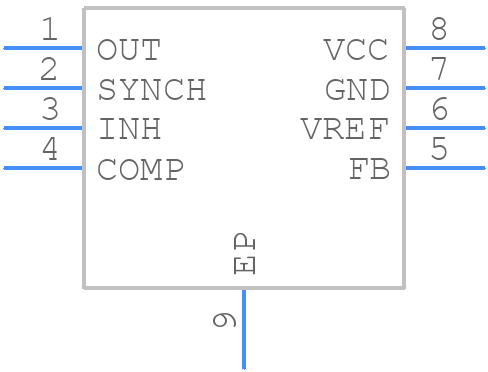

Symbol
A5975D - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
A5975D - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HSOP-8-ren1
click to zoom
3D Models
A5975D - STMicroelectronics - 3D model - Small Outline Packages - HSOP-8-ren1
click to zoom

A5975D Details

  • Manufacturer Part Number:

    A5975D

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PowerSO-8

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    OUTPUT VOLTAGE ADJUSTABLE FROM 1.235 V TO 35 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5.25 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    280 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

A5975D Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for component placement, routing, and grounding to minimize EMI and ensure optimal performance.
  • The A5975D's internal voltage regulators can be configured using the VREG1 and VREG2 pins. Refer to the datasheet's 'Voltage Regulators' section and the application note AN4979 for detailed configuration guidelines.
  • The A5975D has a maximum junction temperature of 150°C. Ensure reliable operation by following the thermal management guidelines in the datasheet, using a suitable heat sink, and maintaining a safe operating temperature margin.
  • The A5975D's OCP feature can be enabled by connecting the OCP pin to a resistor and a capacitor. Refer to the datasheet's 'Overcurrent Protection' section for detailed implementation guidelines and component value calculations.
  • Use 100nF to 1uF decoupling capacitors with a voltage rating of 10V or higher, placed as close as possible to the A5975D's power pins. Refer to the datasheet's 'Decoupling' section for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A5975D Overview

Use the download button to access the A5975D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5975, or try a keyword search, such as Switching Regulator or Controllers
