A5979GLPTR-T - Allegro Microsystems

Description: Microstepping DMOS Driver W/Translator

Download A5979GLPTR-T Model

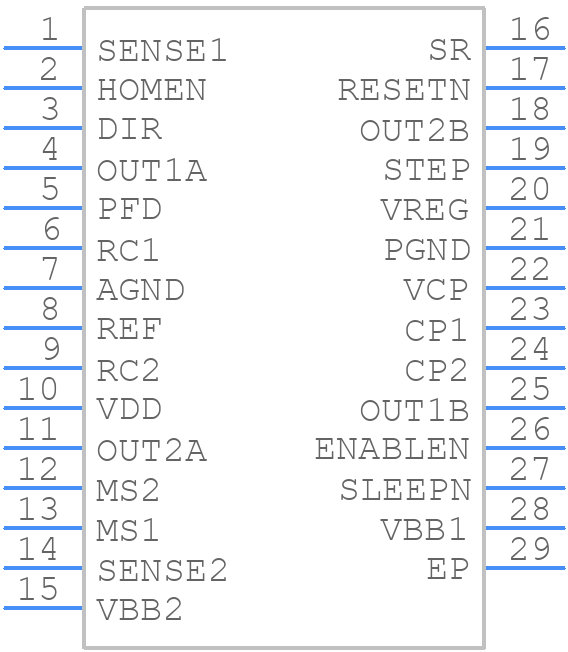

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A5979GLPTR-T - Allegro Microsystems PCB footprint - Other - Other - LP_28-pin eTSSOP
click to zoom
3D Models
A5979GLPTR-T - Allegro Microsystems  - 3D model - Other - LP_28-pin eTSSOP
click to zoom

A5979GLPTR-T Details

  • Manufacturer Part Number:

    A5979GLPTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • Additional Feature:

    ALSO REQUIRED LOAD SUPPLY VOLTAGE 8 TO 40 V

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    DMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

A5979GLPTR-T Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
  • To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense traces short and away from noise sources, and using a low-impedance path for the sense lines. Additionally, calibrating the device during manufacturing can help improve accuracy.
  • A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor can be used to filter out high-frequency noise on the input lines. However, the optimal filter configuration may vary depending on the specific application and noise environment.
  • The A5979GLPTR-T has a built-in overcurrent detection feature that can be used to trigger an interrupt or shutdown the device in case of an overcurrent event. It's essential to implement a suitable overcurrent protection scheme, such as a fuse or a PTC resettable fuse, to prevent damage to the device and the system.
  • The A5979GLPTR-T is rated for operation from -40°C to 150°C (TJ). However, the device's performance and accuracy may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider the operating temperature range when designing the system.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A5979GLPTR-T Overview

Use the download button to access the A5979GLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5979, or try a keyword search, such as Motion Control Electronics
