A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Avoid placing thermal vias under the device, and keep the PCB surface clean and flat.
To ensure accurate current sensing, use a low-impedance current sense resistor (CSR) and place it as close to the device as possible. Ensure the CSR is properly soldered and connected to the device. Also, use a low-noise, low-impedance PCB layout, and avoid routing high-current or high-frequency signals near the CSR.
A recommended input filter configuration for the A5985GETTR-T involves using a low-pass filter with a cutoff frequency below 100 kHz to filter out high-frequency noise. A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor can be used. However, the optimal filter configuration may vary depending on the specific application and noise environment.
The A5985GETTR-T has a built-in overcurrent protection feature that limits the output current to a safe level. To handle overcurrent protection, connect the OCP pin to a voltage source (e.g., VCC) through a resistor, and ensure the OCP threshold is set correctly. Also, implement a fault detection and response mechanism in your system to handle overcurrent events.
The recommended operating temperature range for the A5985GETTR-T is -40°C to 150°C. However, the device can operate up to 170°C for short periods during fault conditions. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5985GETTR-T Overview

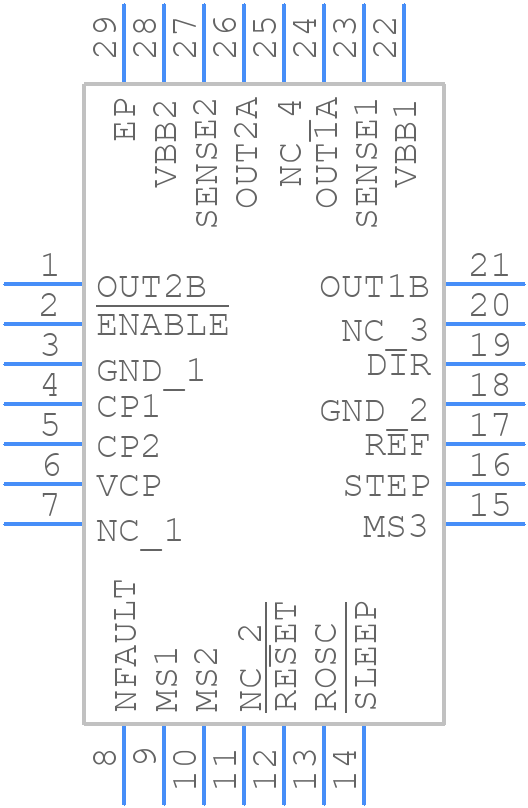

Use the download button to access the A5985GETTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5985,
or try a keyword search, such as Motion Control Electronics
