SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.06 mm
Supply Current-Max:
10 mA
Supply Voltage-Max:
40 V
Supply Voltage-Min:
6 V
Supply Voltage-Nom:
16 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
3 mm
A6261KLYTR-T Frequently Asked Questions (FAQs)
A good PCB layout for the A6261KLYTR-T involves keeping the sense lines (VCC, GND, and SENSE) as short as possible, using a ground plane, and minimizing the distance between the IC and the sense resistor. A 4-layer PCB with a dedicated ground plane is recommended.
The A6261KLYTR-T has built-in thermal shutdown and overcurrent protection. When the device exceeds the maximum operating temperature (Tj) or current (Ilim), it will shut down. To handle these events, design a fault detection circuit to monitor the device's status and take corrective action.
A 10 μF to 22 μF ceramic capacitor is recommended for the VCC pin to filter out noise and ensure stable operation. The capacitor should be placed as close to the VCC pin as possible.
Calibration involves adjusting the sense resistor value to match the device's internal gain. Use a known current source and measure the output voltage. Adjust the sense resistor value until the output voltage matches the expected value. Repeat this process for different current levels to ensure accurate measurement.
The maximum allowable voltage on the SENSE pin is VCC + 0.3 V. Exceeding this voltage may damage the device. Ensure that the sense resistor value is chosen to keep the SENSE pin voltage within this limit.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A6261KLYTR-T Overview

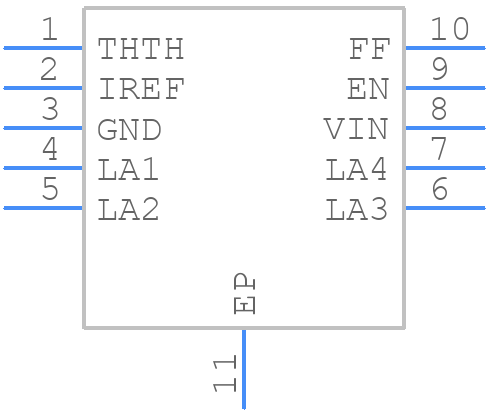

Use the download button to access the A6261KLYTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A6261,
or try a keyword search, such as Display Drivers
