A6282EESTR-T - Allegro Microsystems

Description: 16-Channel Constant-Current LED Driver

Download A6282EESTR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

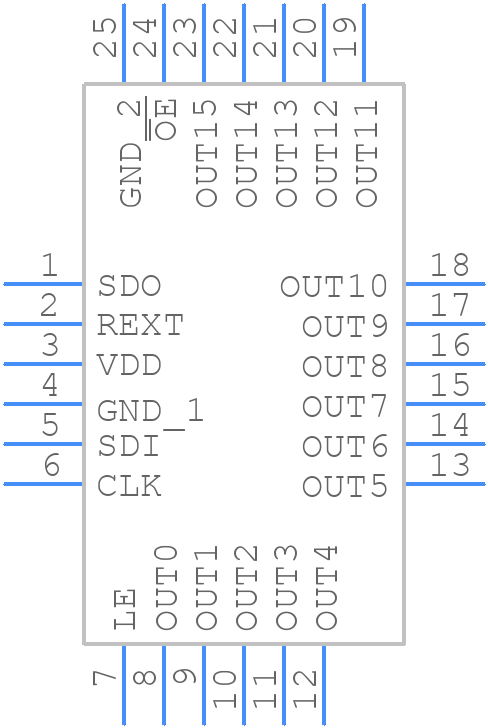

Symbol
A6282EESTR-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A6282EESTR-T - Allegro Microsystems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN50P400X400X80-25N
click to zoom
3D Models
A6282EESTR-T - Allegro Microsystems - 3D model - Quad Flat No-Lead - QFN50P400X400X80-25N
click to zoom

A6282EESTR-T Details

  • Manufacturer Part Number:

    A6282EESTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    4 X 4 MM, 0.75 MM HEIGHT, LEAD FREE, MO-220WGGD, QFN-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    16

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4 mm

  • fmax-Min:

    30 MHz

A6282EESTR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the A6282EESTR-T involves keeping the sense lines (VS, VOUT, and GND) as short as possible, using a solid ground plane, and minimizing the loop area of the sense lines to reduce noise and electromagnetic interference (EMI).
  • To ensure accurate current sensing, make sure to use a low-impedance current sense resistor (RSENSE) and keep the sense lines as short as possible. Also, ensure that the RSENSE value is within the recommended range specified in the datasheet.
  • The A6282EESTR-T has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C to ensure reliable operation.
  • The A6282EESTR-T has a built-in overcurrent protection feature that limits the output current to a safe level. However, it's recommended to add external overcurrent protection circuitry to ensure the device is protected from excessive current surges.
  • The recommended input voltage range for the A6282EESTR-T is 5.5V to 50V, but the device can operate up to 60V with reduced performance. Operating the device outside the recommended range may affect its reliability and accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A6282EESTR-T Overview

Use the download button to access the A6282EESTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A6282, or try a keyword search, such as Display Drivers
