A6985F3V3 - STMicroelectronics

Description: Automotive 38 V, 500 mA synchronous step-down switching regulator with 30 µA quiescent current

Download A6985F3V3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

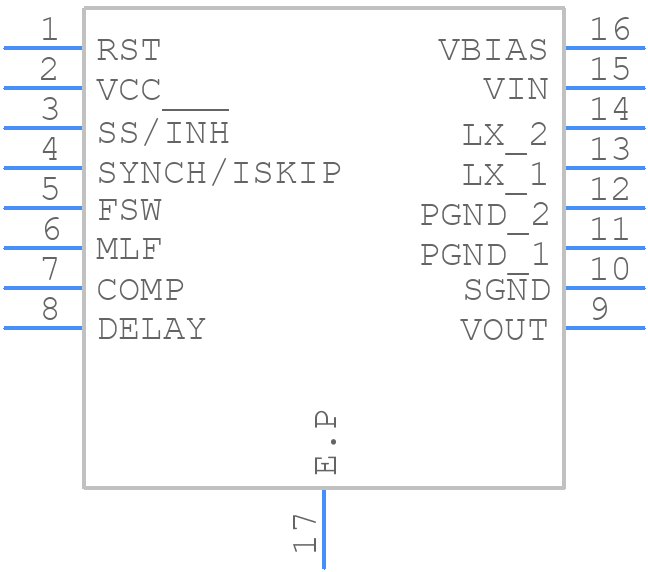

Symbol
A6985F3V3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
A6985F3V3 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16_2021
click to zoom
3D Models
A6985F3V3 - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP16_2021
click to zoom

A6985F3V3 Details

  • Manufacturer Part Number:

    A6985F3V3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    135 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    6.4 mm

A6985F3V3 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The selection of the inductor depends on the specific application requirements, such as output voltage, current, and switching frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and also offers an inductor selection tool on their website to help engineers choose the right component.
  • The maximum junction temperature of the A6985F3V3 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation.
  • Yes, the A6985F3V3 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, engineers should consult the specific requirements of their application and ensure that the device meets all necessary qualifications and certifications.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4979, which includes a list of common faults, their causes, and recommended solutions. Engineers can also consult the datasheet and contact STMicroelectronics' technical support for further assistance.
