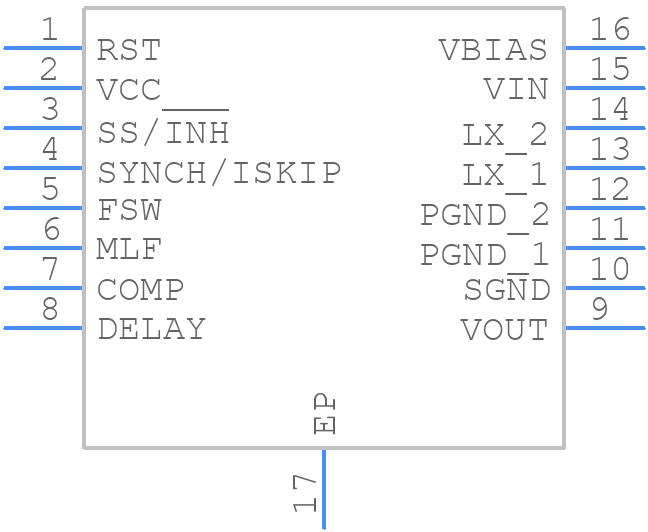

A6985F5VTR - STMicroelectronics

A6985F5VTR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
• How do I select the correct input capacitor for the A6985F5VTR?
  The input capacitor selection depends on the input voltage, current, and ripple requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value that ensures the ripple voltage is within the recommended range (typically 10-50 μF).
• What is the maximum allowed voltage drop across the sense resistors?
  The maximum allowed voltage drop across the sense resistors is typically 100 mV to ensure accurate current sensing. Exceeding this value may lead to inaccurate current measurements and affect the device's performance.
• Can I use the A6985F5VTR in a high-temperature environment?
  The A6985F5VTR is rated for operation up to 150°C, but it's essential to consider the thermal derating and ensure the device is properly cooled to prevent overheating. Consult the datasheet and application notes for guidance on thermal management.
• How do I troubleshoot the A6985F5VTR if it's not functioning as expected?
  Start by verifying the input voltage, current, and output voltage are within the recommended ranges. Check the PCB layout for any thermal or electrical issues. Use an oscilloscope to monitor the device's internal signals, such as the clock and enable pins. Consult the datasheet and application notes for troubleshooting guidelines and contact STMicroelectronics support if necessary.
