A6985FTR - STMicroelectronics

Description: Buck Switching Regulator IC Positive Adjustable 0.85V 1 Output 500mA 16-PowerTSSOP (0.173", 4.40mm Width)

Download A6985FTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

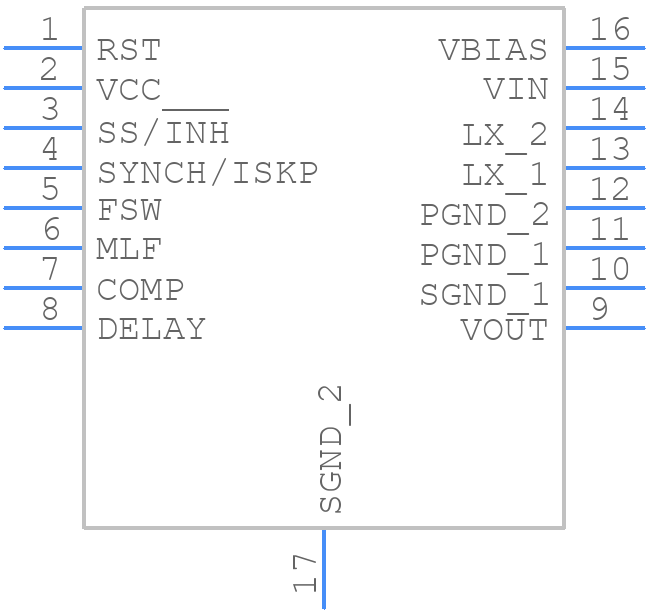

A6985FTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
A6985FTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16_2024-2
click to zoom
3D Models
A6985FTR - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP16_2024-2
click to zoom

A6985FTR Details

  • Manufacturer Part Number:

    A6985FTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    135 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6.4 mm

A6985FTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4979, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The inductor selection depends on the specific application requirements, such as output voltage, current, and switching frequency. STMicroelectronics provides an inductor selection guide in the application note AN4979, which includes a list of recommended inductors and their corresponding characteristics.
  • The maximum junction temperature (Tj) for the A6985FTR is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable long-term operation.
  • The A6985FTR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and a capacitor. The application note AN4979 provides a detailed example of how to implement overcurrent protection and calculate the required resistor and capacitor values.
  • STMicroelectronics recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF for the input capacitor. The application note AN4979 provides more information on input capacitor selection and placement.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A6985FTR Overview

Use the download button to access the A6985FTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A6985, or try a keyword search, such as Switching Regulator or Controllers
