A6986 - STMicroelectronics

Description: Switching Voltage Regulators 38 V 2 A synchronous step-down switching regulator with 30 uA quiescent current

Download A6986 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

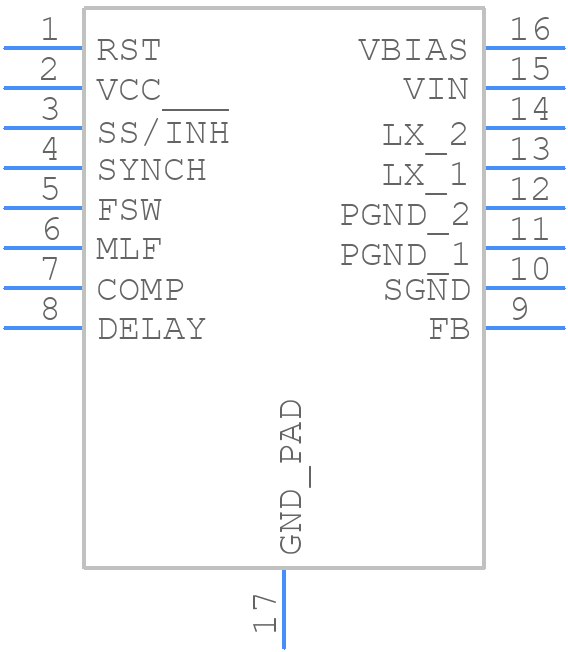

A6986 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
A6986 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP16
click to zoom
3D Models
A6986 - STMicroelectronics - 3D model - Small Outline Packages - HTSSOP16
click to zoom

A6986 Details

  • Manufacturer Part Number:

    A6986

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HTSSOP-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.85 V TO 38 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    38 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    3.6 V

  • Output Voltage-Min:

    2.9 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    CONSTANT FREQUENCY

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

A6986 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4921, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The selection of the inductor depends on the specific application requirements, such as output current, switching frequency, and ripple current. STMicroelectronics provides a inductor selection guide in the application note AN4921, which includes a list of recommended inductors and their characteristics.
  • The maximum junction temperature (Tj) of the A6986 is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C to ensure reliable operation and minimize the risk of thermal shutdown.
  • Yes, the A6986 is qualified for automotive applications and can operate in high-temperature environments up to 125°C. However, it's essential to follow the recommended PCB layout and thermal management guidelines to ensure reliable operation.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4921, which includes a list of common issues, their causes, and recommended solutions. Additionally, the datasheet provides a detailed description of the device's behavior and fault detection mechanisms.
