A6986F5V - STMicroelectronics

Description: Switching Voltage Regulators 38 V 1.5 A synchronous step-down switching regulator with 30 uA quiescent current

Download A6986F5V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

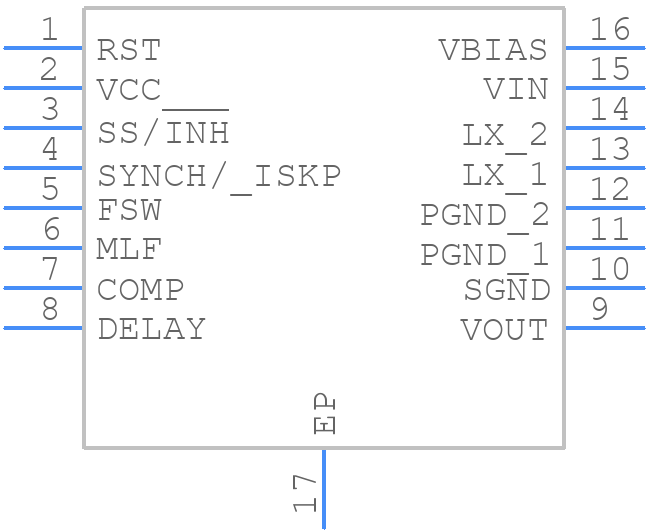

A6986F5V - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
A6986F5V - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - A6986F5V
click to zoom
3D Models
A6986F5V - STMicroelectronics - 3D model - Small Outline Packages - A6986F5V
click to zoom

A6986F5V Details

  • Manufacturer Part Number:

    A6986F5V

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HTSSOP16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    135 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.4 mm

A6986F5V Frequently Asked Questions (FAQs)

  • STMicroelectronics recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the device to ensure optimal thermal performance.
  • Follow the recommended power-up sequence and configuration procedure outlined in the datasheet, and ensure that the input voltage is within the specified range.
  • The critical components that affect the device's EMC are the input and output capacitors, the inductor, and the PCB layout. Ensure that these components are selected and laid out carefully to minimize electromagnetic interference.
  • Check the input voltage, output voltage, and feedback resistors for correct values and connections. Verify that the device is properly configured and that the output capacitor is suitable for the application.
  • Ensure that the device is mounted on a heat sink or a thermally conductive PCB, and that the thermal interface material is suitable for the application. Also, ensure that the device is not exposed to excessive temperatures or thermal gradients.
