A6D-6100 - OMRON Electronics

Description: Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 30mA 30VDC -20°C ~ 70°C

Download A6D-6100 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this A6D-6100 model

Email notifications will be applied after download.

Send part feedback

Symbol

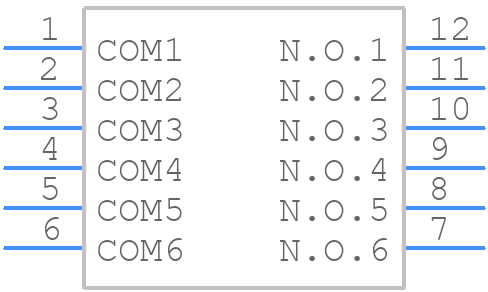

A6D-6100 - OMRON Electronics - PCB symbol

PCB Footprints

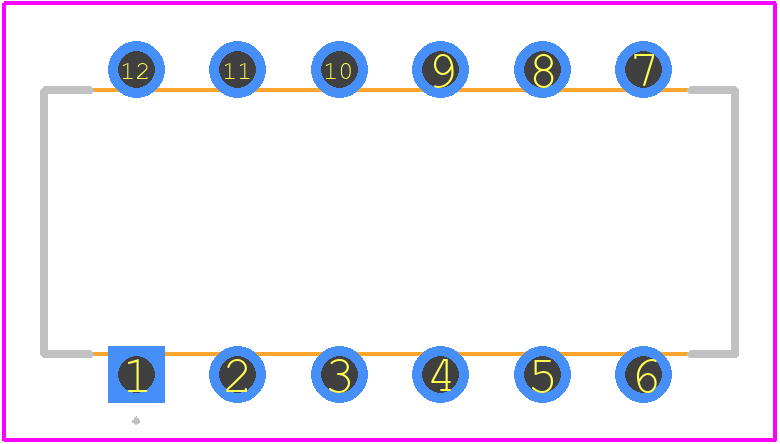

A6D-6100 - OMRON Electronics PCB footprint - Other - Other - DIP-12_2026-2.2

Datasheet Download Datasheet
Stock & Prices Price & Stock for A6D-6100
Part Number A6D-6100
Manufacturer OMRON Electronics
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - DIP-12_2026-2.2
Released Date May 8, 2026
Last Modified Date May 8, 2026 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

A6D-6100 Details

Manufacturer Part Number:
A6D-6100
Manufacturer:
OMRON Electronic Components

Trust Checks

Community Provided

System Verified

Community Approved

A6D-6100 Overview

Use the download button to access the A6D-6100 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like A6D-6, or try a keyword search, such as DIP Switches
