A6TR-8101 - OMRON Electronics

Description: 8 Way Through Hole DIP Switch SPST, Lever Actuator

Download A6TR-8101 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this A6TR-8101 model

Email notifications will be applied after download.

Send part feedback

Symbol

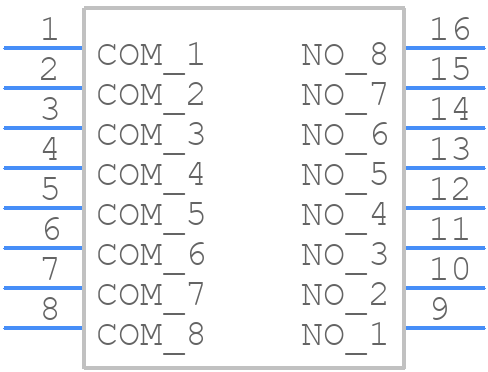

A6TR-8101 - OMRON Electronics - PCB symbol

PCB Footprints

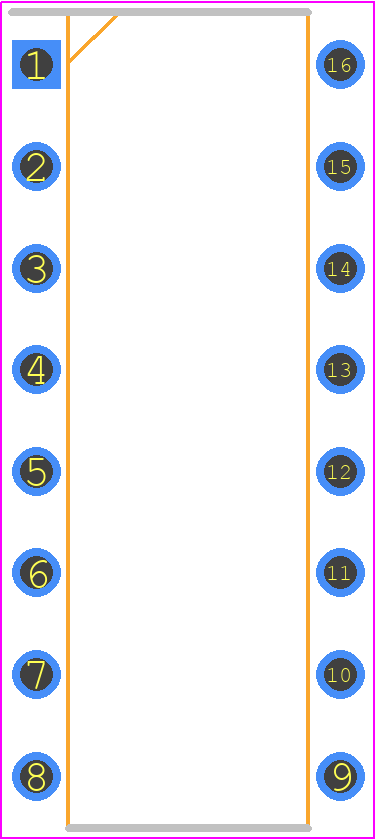

A6TR-8101 - OMRON Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP16

3D Models

A6TR-8101 - OMRON Electronics - 3D model - Dual-In-Line Packages - DIP16

Datasheet Download Datasheet
Stock & Prices Price & Stock for A6TR-8101
Part Number A6TR-8101
Manufacturer OMRON Electronics
Pin Count 16
Part Category Switch
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - DIP16
Released Date Jun 16, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

A6TR-8101 Details

Manufacturer Part Number:
A6TR-8101
Manufacturer:
OMRON Electronic Components

Trust Checks

Community Provided

System Verified

Community Approved

A6TR-8101 Overview

Use the download button to access the A6TR-8101 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like A6TR-, or try a keyword search, such as DIP Switches
