A7102CHTK2/T0BC2AJ - NXP

Description: NXP - A7102CHTK2/T0BC2AJ - IOT PLUG/TRUST SECURE ELEMENT, HVSON-8

Download A7102CHTK2/T0BC2AJ Model
Schematic
symbols

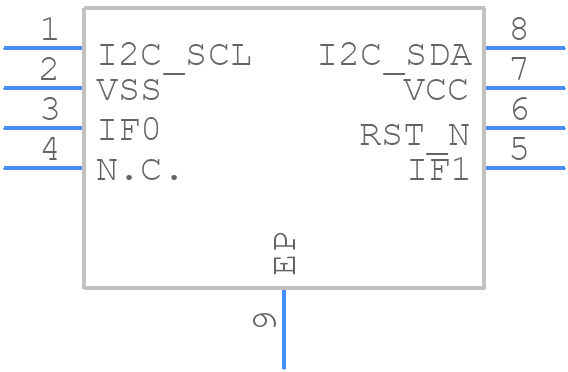

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A7102CHTK2/T0BC2AJ - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - HVSON8_11
click to zoom
3D Models
A7102CHTK2/T0BC2AJ - NXP  - 3D model - Small Outline No-lead - HVSON8_11
click to zoom

A7102CHTK2/T0BC2AJ Details

  • Manufacturer Part Number:

    A7102CHTK2/T0BC2AJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    HVSON-8

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Additional Feature:

    ALSO AVAILABLE WITH 3.3V NOM SUPPLY

  • JESD-30 Code:

    S-PDSO-N8

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    90 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,32

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.98 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

  • uPs/uCs/Peripheral ICs Type:

    CRYPTOGRAPHIC AUTHENTICATOR
