A8450KLBTR-T - Allegro Microsystems

Description: Multi-Output Regulator

Download A8450KLBTR-T Model

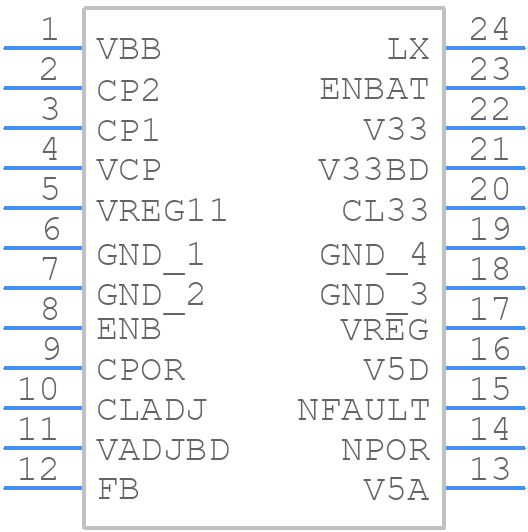

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

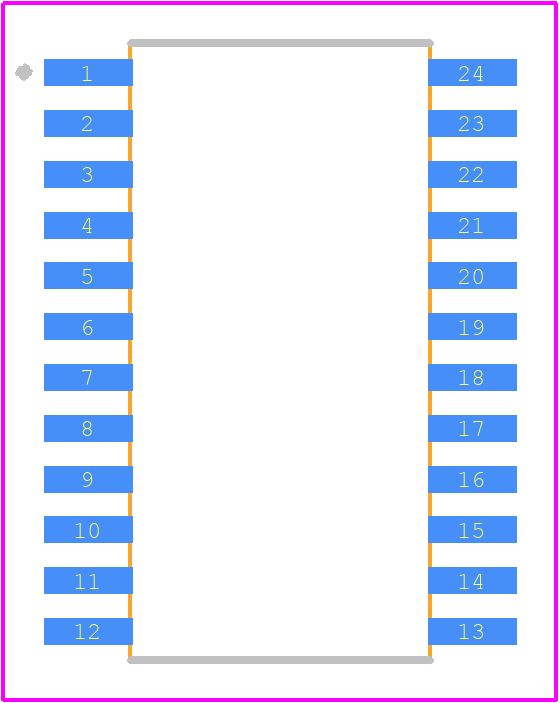

A8450KLBTR-T - Allegro Microsystems PCB footprint - Other - Other - LB 24-pin SOICW
click to zoom
3D Models
A8450KLBTR-T - Allegro Microsystems  - 3D model - Other - LB 24-pin SOICW
click to zoom

A8450KLBTR-T Details

  • Manufacturer Part Number:

    A8450KLBTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

A8450KLBTR-T Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
  • To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense traces short and away from noise sources, and using a low-impedance path for the sense lines. Additionally, calibrating the device during manufacturing can help improve accuracy.
  • A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor is a good starting point for most applications. However, the optimal filter configuration may vary depending on the specific application and noise environment.
  • The A8450 has a built-in overcurrent detection feature that can be used to trigger an interrupt or shutdown the device. It's essential to implement a suitable overcurrent response mechanism in the system design to prevent damage or ensure safe operation.
  • The maximum allowed voltage on the VCC pin is 5.5 V. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended operating range.
