A good PCB layout for the A8500EECTR-T involves keeping the sensitive analog circuitry away from the digital circuitry, using a solid ground plane, and minimizing the length of the traces connected to the output pins. Allegro provides a recommended PCB layout in their application notes.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, use a low-impedance current sense resistor, and minimize the resistance of the PCB traces. Additionally, calibrate the device according to the datasheet recommendations and consider using a precision voltage reference.
The maximum allowable voltage on the VCC pin of the A8500EECTR-T is 5.5V. Exceeding this voltage may damage the device. It's recommended to use a voltage regulator or a voltage limiter to ensure the voltage stays within the specified range.
The A8500EECTR-T has a built-in thermal shutdown feature that disables the device when it overheats. To handle this feature, ensure good thermal dissipation on the PCB, avoid overheating the device, and implement a thermal monitoring system to detect and respond to thermal shutdown events.
The A8500EECTR-T is rated for operation up to 150°C. However, the device's accuracy and reliability may degrade at high temperatures. It's essential to consider the temperature coefficient of the device and ensure proper thermal management when operating in high-temperature environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8500EECTR-T Overview

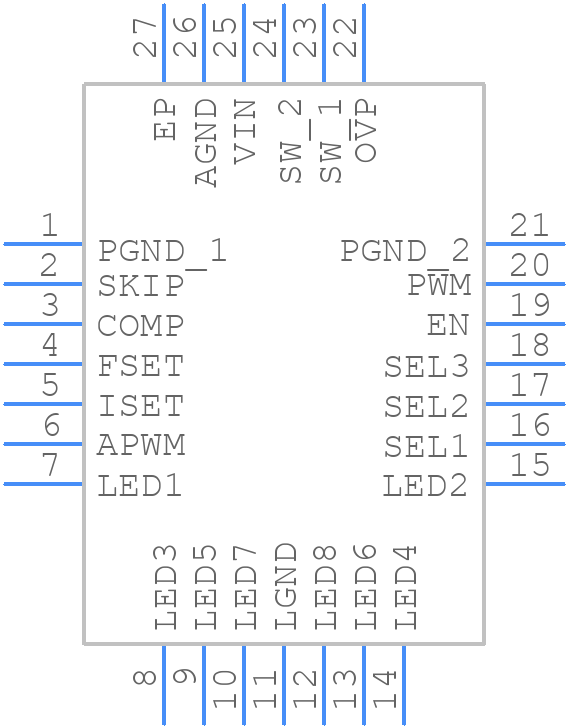

Use the download button to access the A8500EECTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8500,
or try a keyword search, such as Display Drivers
