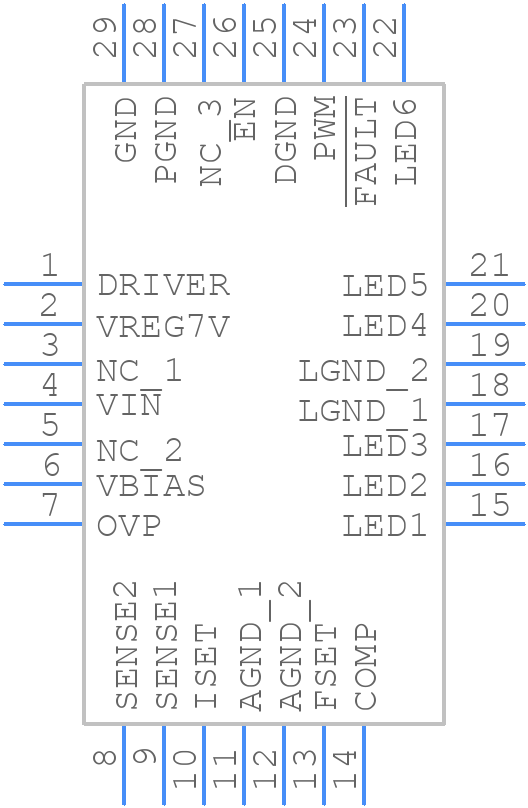

A8512EETTR-T - Allegro Microsystems

A8512EETTR-T Details

• Manufacturer Part Number:

  A8512EETTR-T

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  QFN-28

• Pin Count:

  28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Allegro MicroSystems LLC

• YTEOL:

  0

• Additional Feature:

  IT ALSO NEED 4.75 TO 5.5V BIAS SUPPLY

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  S-XQCC-N28

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  2

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  36

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC28,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  24 V

• Supply Voltage-Min:

  8 V

• Supply Voltage-Nom:

  12 V

• Supply Voltage1-Max:

  8 V

• Supply Voltage1-Min:

  6.5 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  5 mm
