A8513KLYTR-T - Allegro Microsystems

Description: Backlight Driver For Small/Medium Size LCDs

Download A8513KLYTR-T Model
Schematic
symbols

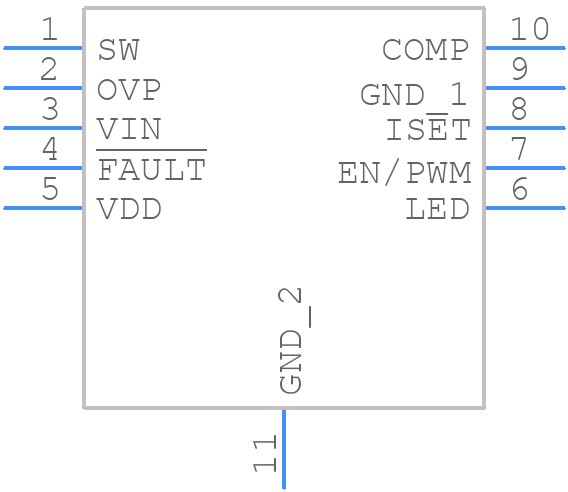

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A8513KLYTR-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LY, 10-Pin MSOP with Exposed Thermal Pad
click to zoom
3D Models
A8513KLYTR-T - Allegro Microsystems  - 3D model - Small Outline Packages - LY, 10-Pin MSOP with Exposed Thermal Pad
click to zoom

A8513KLYTR-T Details

  • Manufacturer Part Number:

    A8513KLYTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7.89

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Multiplexed Display Capability:

    NO

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.06 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    16 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

A8513KLYTR-T Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
  • To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense lines short and away from noise sources, and using a low-impedance path for the sense lines. Additionally, calibrating the device during manufacturing can help improve accuracy.
  • A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor is a good starting point for most applications. However, the optimal filter configuration may vary depending on the specific application and noise environment.
  • The A8513 has a built-in overcurrent detection feature that can be used to trigger an interrupt or shutdown the system. It's essential to implement a suitable overcurrent response mechanism, such as reducing the current limit or shutting down the system, to prevent damage to the device or system.
  • The A8513 is rated for operation from -40°C to 150°C (TJ). However, it's essential to consider the specific application and potential thermal gradients when designing the system.
