SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Current-Max:
10 mA
Supply Voltage-Max:
40 V
Supply Voltage-Min:
5 V
Supply Voltage-Nom:
16 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
4.4 mm
fmax-Min:
2.5 MHz
A8514KLPTR-T Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance would be to have a solid ground plane on the bottom layer, and to use thermal vias to connect the exposed pad to the ground plane. This helps to dissipate heat efficiently.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense lines short and away from noise sources, and using a low-impedance path for the sense lines. Additionally, calibrate the device according to the datasheet recommendations.
A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor is a good starting point for most applications. However, the optimal filter configuration may vary depending on the specific application and noise environment.
The A8514KLPTR-T has a built-in overcurrent detection feature. When an overcurrent condition is detected, the device will latch off and require a power cycle to reset. It's essential to design a robust overcurrent protection scheme, including proper fuse selection and thermal design, to prevent damage to the device and surrounding components.
The recommended operating temperature range for the A8514KLPTR-T is -40°C to 150°C. However, the device can operate up to 170°C for short periods during fault conditions. It's essential to ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8514KLPTR-T Overview

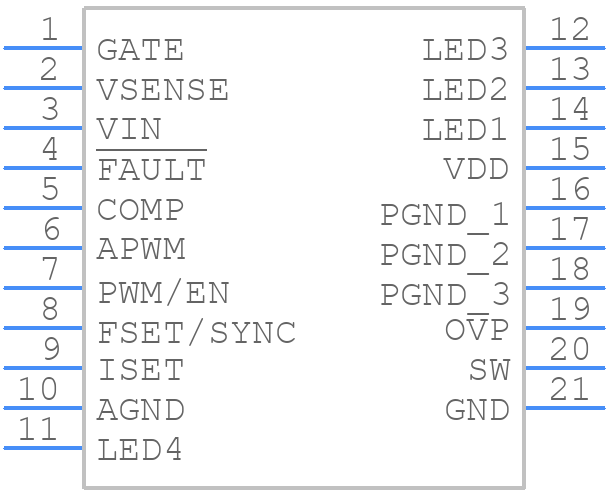

Use the download button to access the A8514KLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8514,
or try a keyword search, such as Display Drivers
