A8580KLPTR-T - Allegro Microsystems

Description: Wide Input Voltage, 2.4 MHz, 2.5 A Asynchronous Buck Regulator With Low-IQ Standby, Sleep Mode, External Synchronization, and NPOR Output

Download A8580KLPTR-T Model

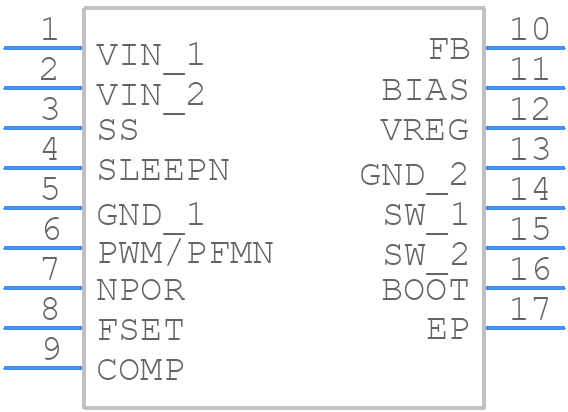

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A8580KLPTR-T - Allegro Microsystems PCB footprint - Other - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom
3D Models
A8580KLPTR-T - Allegro Microsystems  - 3D model - Other - 16-Pin TSSOP (Suffix LP) with Exposed Pad
click to zoom

A8580KLPTR-T Details

  • Manufacturer Part Number:

    A8580KLPTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    3

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Switching Frequency-Max:

    2700 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

A8580KLPTR-T Frequently Asked Questions (FAQs)

  • Allegro recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal dissipation. A minimum of 1 oz copper thickness is recommended.
  • To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, use a low-impedance current sense resistor, and minimize noise coupling. Additionally, Allegro recommends using a Kelvin connection to the sense resistor to reduce errors.
  • Although the datasheet specifies a recommended VCC voltage range of 3.3 V to 5.5 V, Allegro recommends not exceeding 5.25 V to ensure reliable operation and prevent damage to the device.
  • The A8580KLPTR-T has a built-in overcurrent protection feature. To handle overcurrent protection during startup or fault conditions, Allegro recommends using an external current sense resistor and a voltage regulator to limit the current and voltage during these conditions.
  • Although the datasheet specifies an operating temperature range of -40°C to 125°C, Allegro recommends operating the device within a range of -20°C to 85°C for optimal performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A8580KLPTR-T Overview

Use the download button to access the A8580KLPTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8580, or try a keyword search, such as Switching Regulator or Controllers
