Allegro provides a recommended PCB layout in their application note AN296070, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The A8586KEJTR-T-2 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, Allegro recommends using thermal vias and a heat sink to further reduce thermal resistance.
Allegro recommends using a low-pass filter with a cutoff frequency of around 100 kHz to 200 kHz to filter out high-frequency noise and ensure stable operation. The specific filter configuration may vary depending on the application and noise environment.
To troubleshoot output voltage regulation issues, check the input voltage, output load, and feedback resistors for correct configuration and values. Also, verify that the device is properly decoupled and that there are no oscillations or noise on the output. If issues persist, consult Allegro's application notes and technical support resources.
The A8586KEJTR-T-2 has a soft-start feature that ramps up the output voltage during power-up to prevent inrush currents. During power-down, the device's output voltage will decay rapidly to prevent back-EMF damage. The specific power-up and power-down sequences may vary depending on the application and system requirements.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8586KEJTR-T-2 Overview

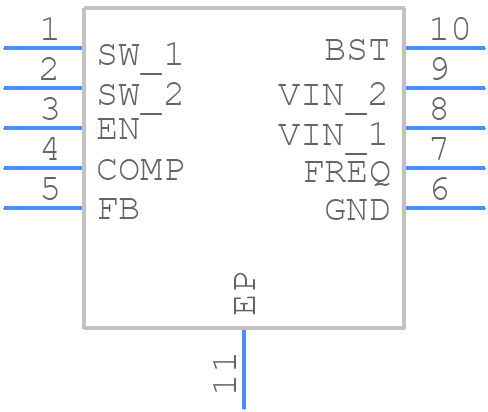

Use the download button to access the A8586KEJTR-T-2 schematic symbol, PCB footprint, and 3D model.
