OUTPUT VOLTAGE RANGE FROM 0.8 V TO 30 V, ALSO OPERATES IN PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
36 V
Input Voltage-Min:
3.8 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
10
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2400 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
3 mm
A8586KEJTR-T Frequently Asked Questions (FAQs)
A multi-layer PCB with a solid ground plane and thermal vias is recommended to ensure optimal thermal performance. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
To ensure accurate current sensing, the device should be calibrated during manufacturing or at the system level. The device should also be operated within the recommended temperature range, and the sense resistor should be selected based on the application's current range.
To minimize EMI, the device should be placed away from high-frequency components, and the PCB should be designed with EMI shielding in mind. The device's output should be filtered and shielded to prevent EMI radiation.
The device has a built-in overcurrent protection feature that limits the output current to prevent damage. In addition, the system should be designed to detect overcurrent conditions and take corrective action, such as shutting down the system or reducing the current limit.
The device is designed to meet the reliability and lifespan expectations of automotive and industrial applications. The device's lifespan is dependent on various factors, including operating temperature, current, and voltage. Refer to the datasheet for specific reliability data.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8586KEJTR-T Overview

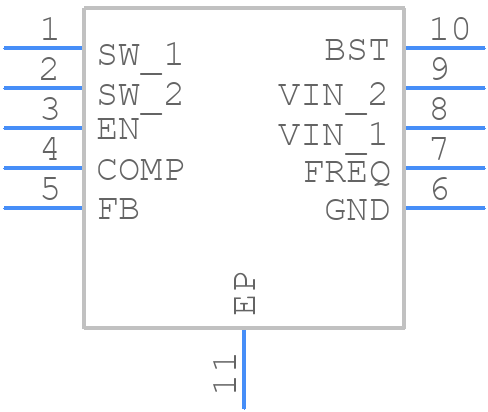

Use the download button to access the A8586KEJTR-T schematic symbol, PCB footprint, and 3D model.
