A8586KLJTR-T-2 - Allegro Microsystems

Description: Wide Input Voltage Adj Frequency 3.5 Amp Buck Reg

Download A8586KLJTR-T-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

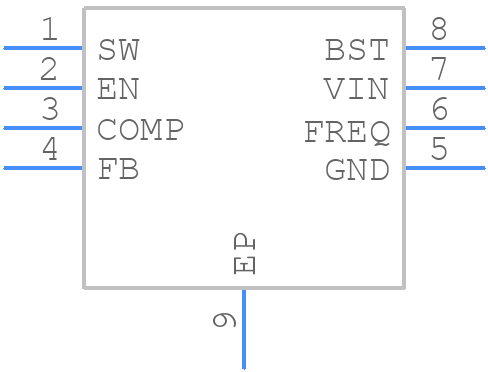

A8586KLJTR-T-2 - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A8586KLJTR-T-2 - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - LJ 8-Pin SOIC with Exposed Thermal Pad
click to zoom
3D Models
A8586KLJTR-T-2 - Allegro Microsystems - 3D model - Small Outline Packages - LJ 8-Pin SOIC with Exposed Thermal Pad
click to zoom

A8586KLJTR-T-2 Details

  • Manufacturer Part Number:

    A8586KLJTR-T-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    8

  • Additional Feature:

    OUTPUT VOLTAGE RANGE FROM 0.8 V TO 30 V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE

  • Seated Height-Max:

    1.7 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2400 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

A8586KLJTR-T-2 Frequently Asked Questions (FAQs)

  • Allegro recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal relief pattern under the IC to ensure optimal thermal performance.
  • To ensure accurate current sensing, use a low-impedance current sense resistor (CSR) and ensure the CSR is placed close to the IC. Also, use a Kelvin connection to the CSR to minimize parasitic inductance.
  • Allegro recommends a low-pass filter with a cutoff frequency of 100 kHz to 1 MHz to filter out high-frequency noise and ensure stable operation.
  • The A8586KLJTR-T-2 has a built-in overcurrent protection feature. Set the OCP threshold using the OCP pin and ensure the OCP response time is set according to the application requirements.
  • The recommended operating temperature range for the A8586KLJTR-T-2 is -40°C to 150°C. However, the device can operate up to 175°C for short periods during fault conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A8586KLJTR-T-2 Overview

Use the download button to access the A8586KLJTR-T-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A8586, or try a keyword search, such as Switching Regulator or Controllers
