Allegro provides a recommended PCB layout in their application note AN296070, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Allegro provides a configuration guide in their datasheet, which includes information on setting the device's operating mode, configuring the output stage, and adjusting the current sense resistors. Additionally, Allegro's application notes and technical support can provide further guidance for specific applications.
The A8587KEJTR-T has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or heat sink, and to follow Allegro's recommended PCB layout guidelines to minimize thermal resistance. Additionally, the device's thermal protection feature can be enabled to prevent overheating.
Allegro provides a troubleshooting guide in their application note AN296070, which includes steps to identify and resolve common issues, such as incorrect pin connections, inadequate power supply, or faulty components. Additionally, Allegro's technical support can provide further assistance and guidance.
Yes, the A8587KEJTR-T is a high-frequency device that can generate electromagnetic interference (EMI). To minimize EMI, Allegro recommends following their recommended PCB layout guidelines, using shielding, and implementing EMI filtering techniques, such as adding ferrite beads or capacitors to the device's output stage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A8587KEJTR-T Overview

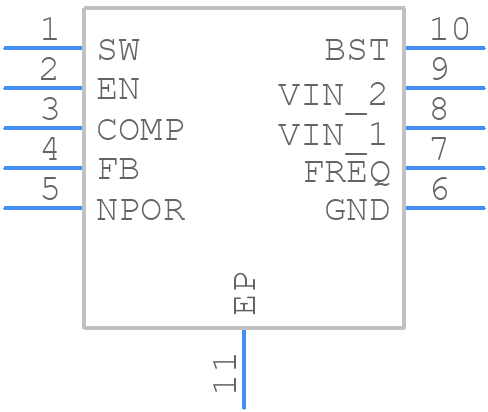

Use the download button to access the A8587KEJTR-T schematic symbol, PCB footprint, and 3D model.
